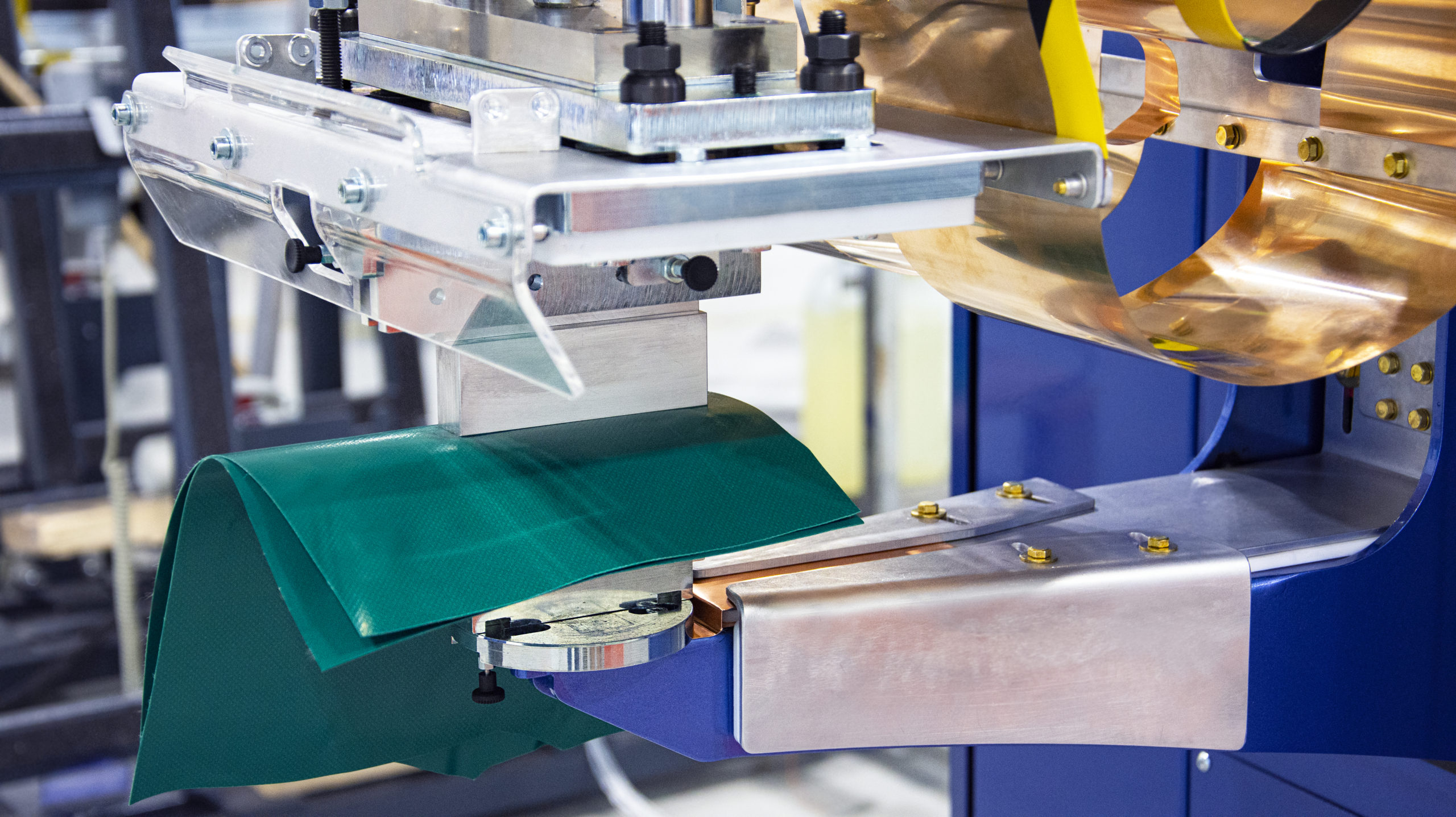

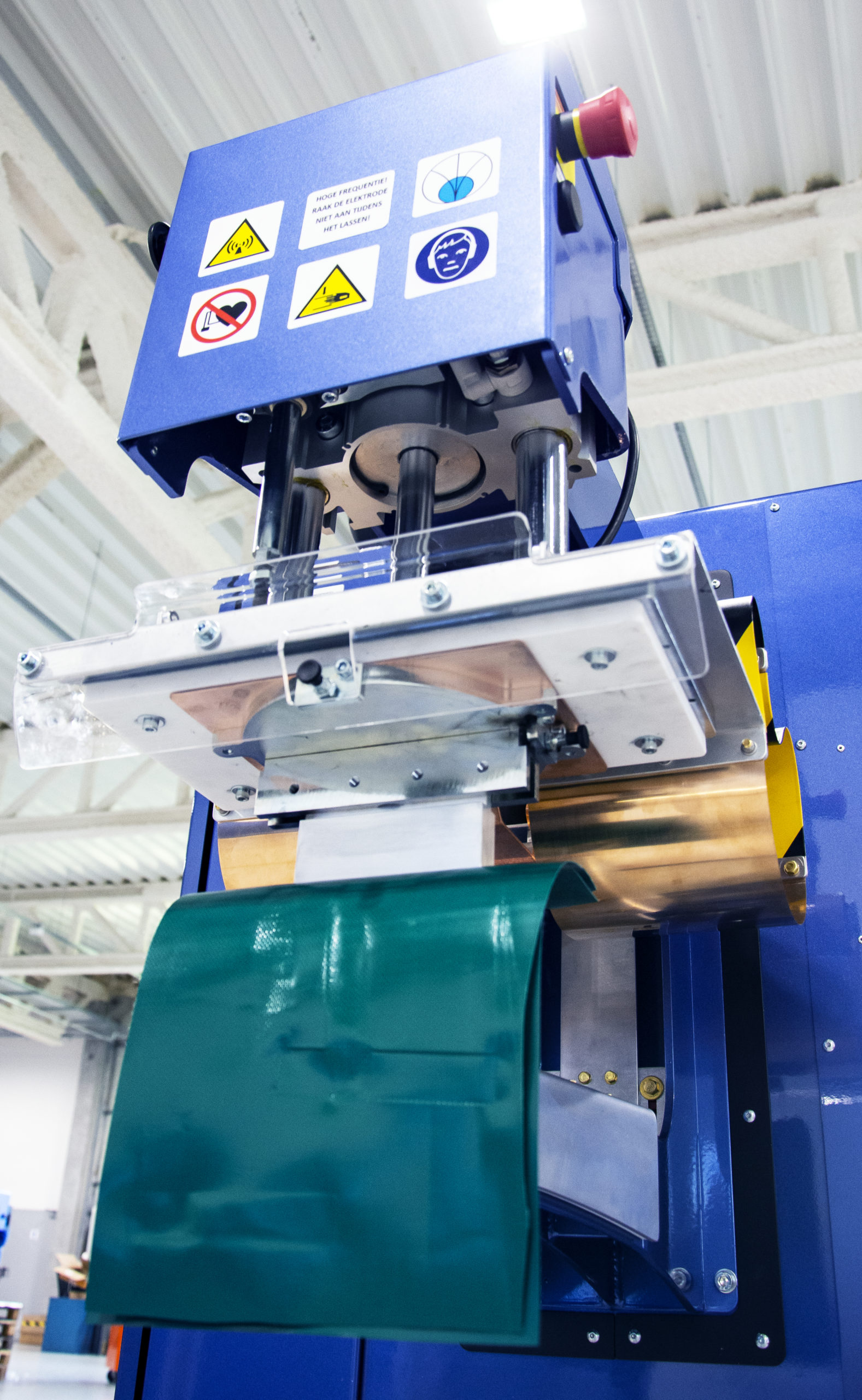

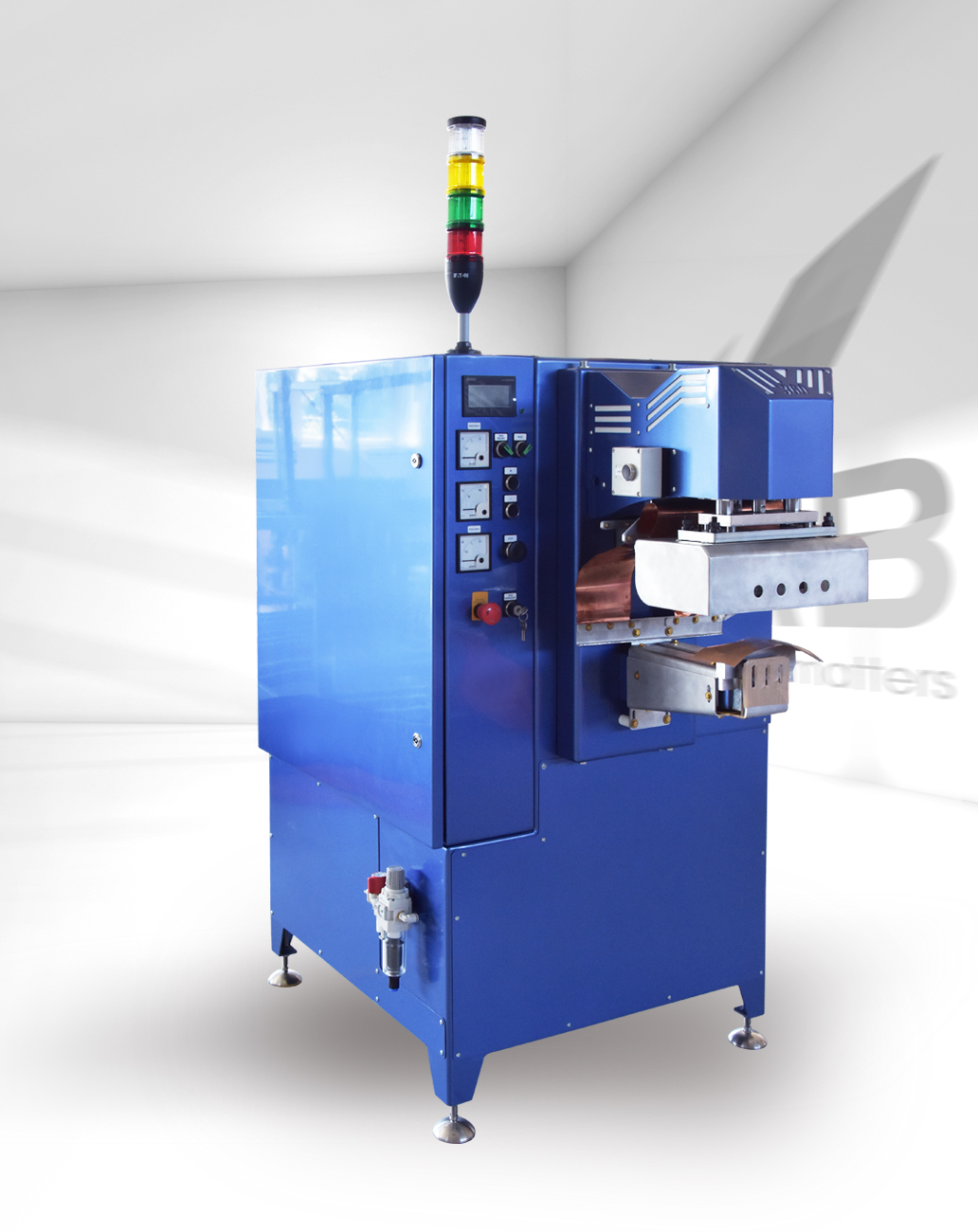

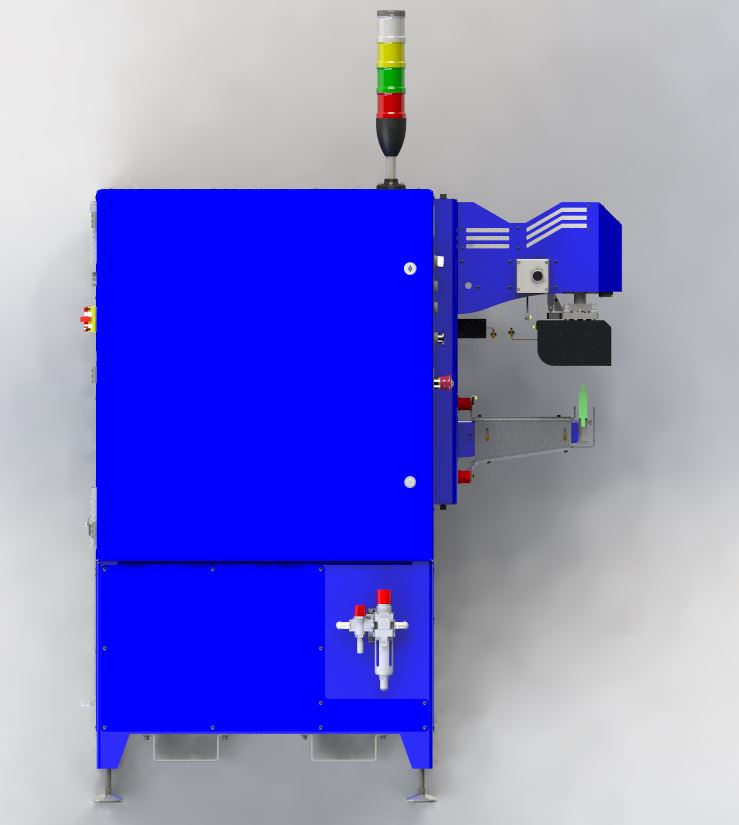

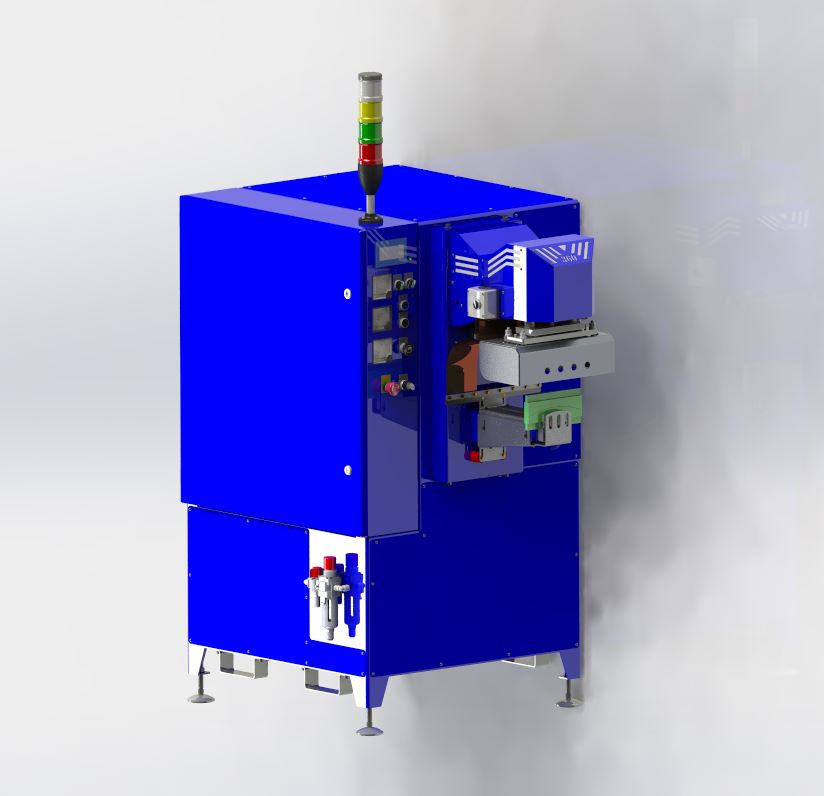

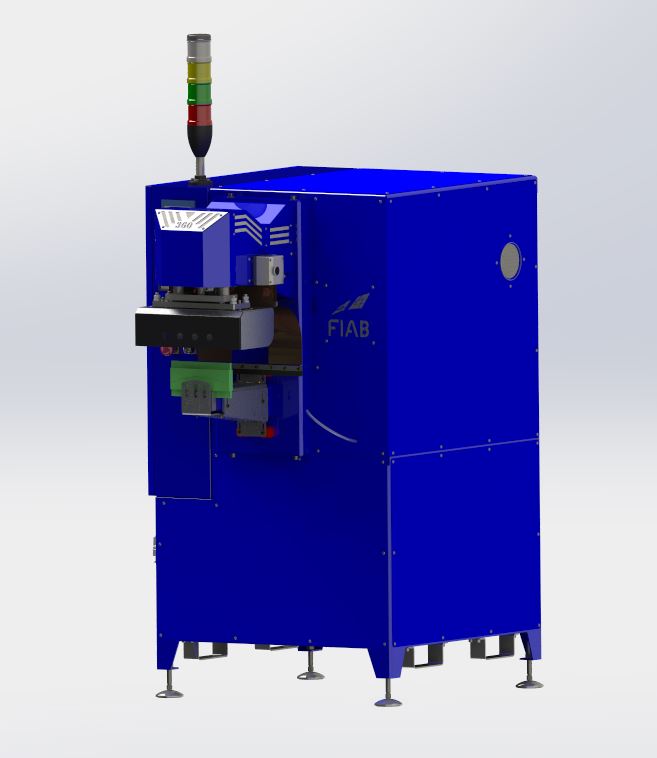

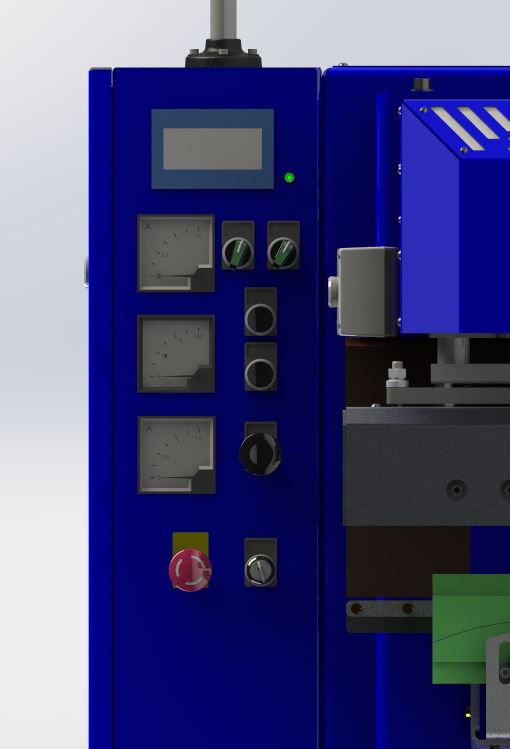

FIAB 360 Welding Machine for Industry Characterized by Precise Welding up to 200mm in Length

The FIAB 360 stationary welding machine is a machine dedicated to production improvement. It can be used for welding small banners, tarpaulins, pontoons or waterbeds, as well as in the automotive, packaging, medical industries and in the production of protective clothing. Welding materials using this device is exceptionally precise.

The FIAB 360 welding machine works excellently in the production of:

- protective clothing,
- sports clothing and shoes,
- packaging,
- automotive parts,
- medical products.

FIAB 360 welding machine technical data

Output power	3 kW
Fuse	25 A
Voltage	3 x 400 V/50 Hz
Operating frequency	40.68 MHz
Cooling	air
Pressure	275kg
Anti-flash	FIAB Security System
Air supply	max. 6 bar
Max air consumption	50m3/h
Max tool length	200 mm
Max welding surface	54 cm2
Machine weight	362 kg

Additional options

ELECTRODES

DUAL LASERS

EXTRA LED LIGHT BEHIND TOOL HOLDER

ANTI SLIPPERY FLOOR

ROLL HOLDER

MAGNETIC LIST

Machine especially recommended for the following industries:
