FIAB 1400L S – an extremely flexible welding machine for large PVC and TPU welded structures

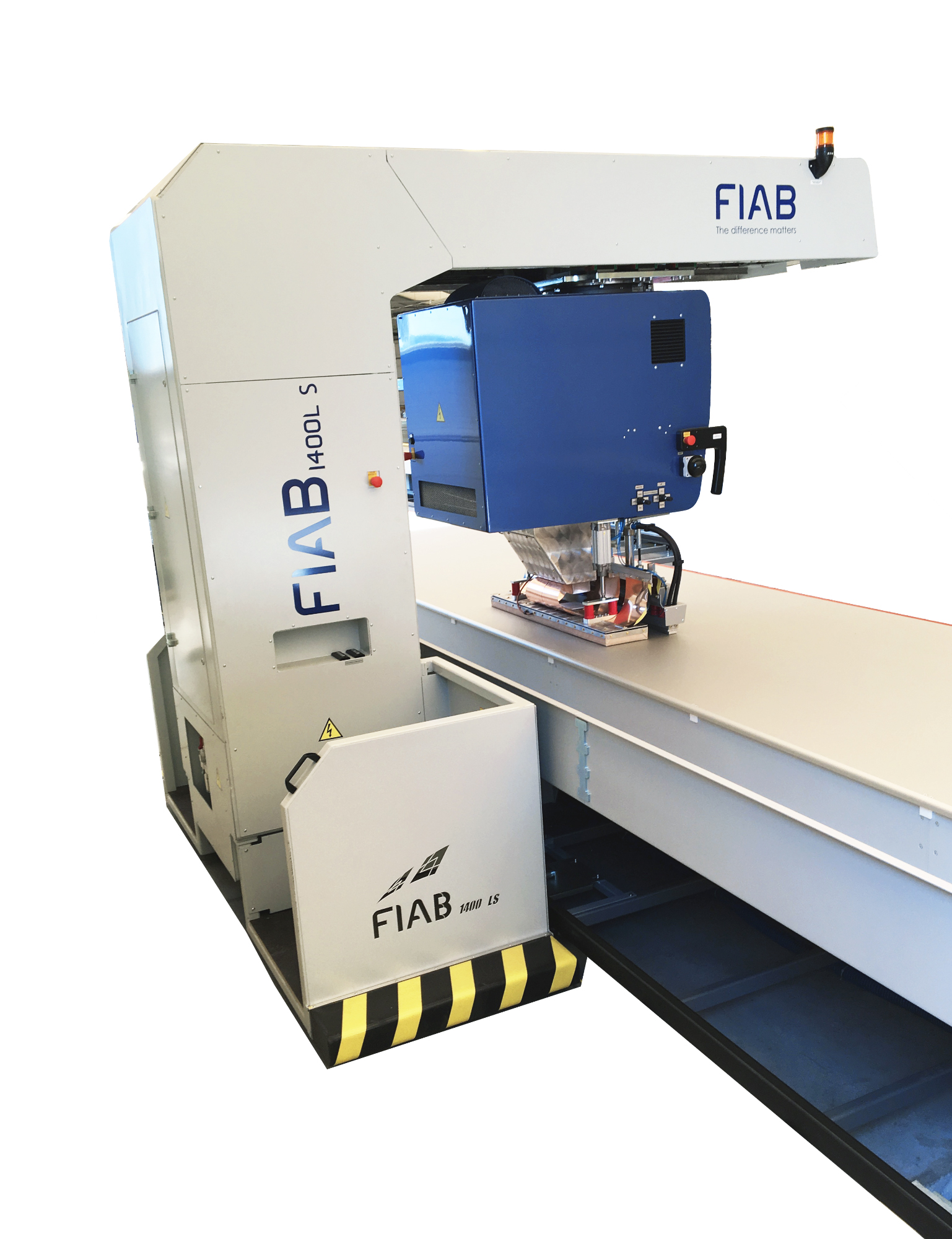

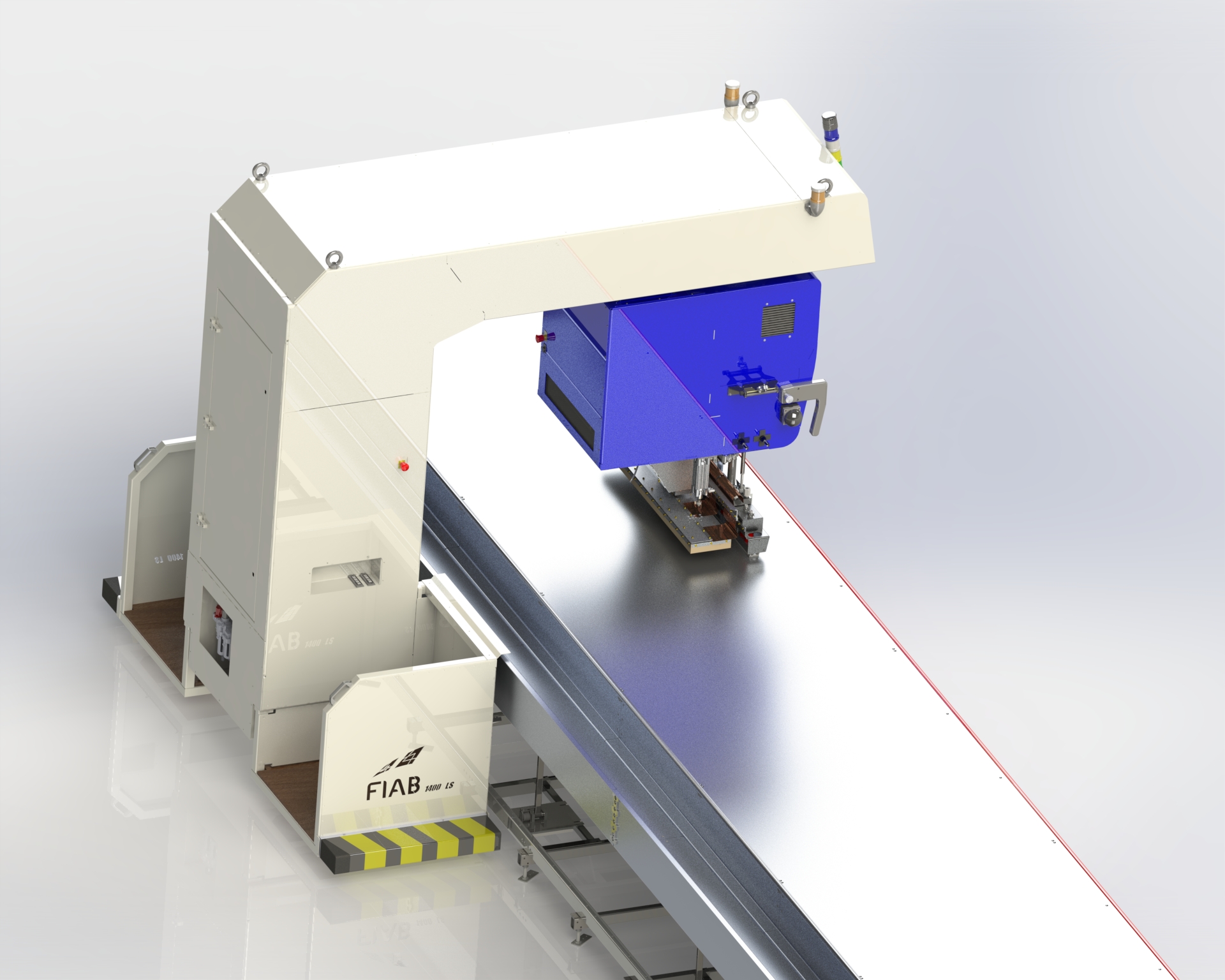

The HF welding machine FIAB 1400L S is an advanced, premium-segment machine that sets new standards of mobility among HF welders operating on rail systems. It is a solution designed for maximum flexibility and efficiency in large-scale production.

Its unique feature is an HF head with 360° rotation, additionally equipped with transverse movement (Y-axis) of up to an impressive 1200 mm – which significantly reduces the need to move the material, keeping it to an absolute minimum.

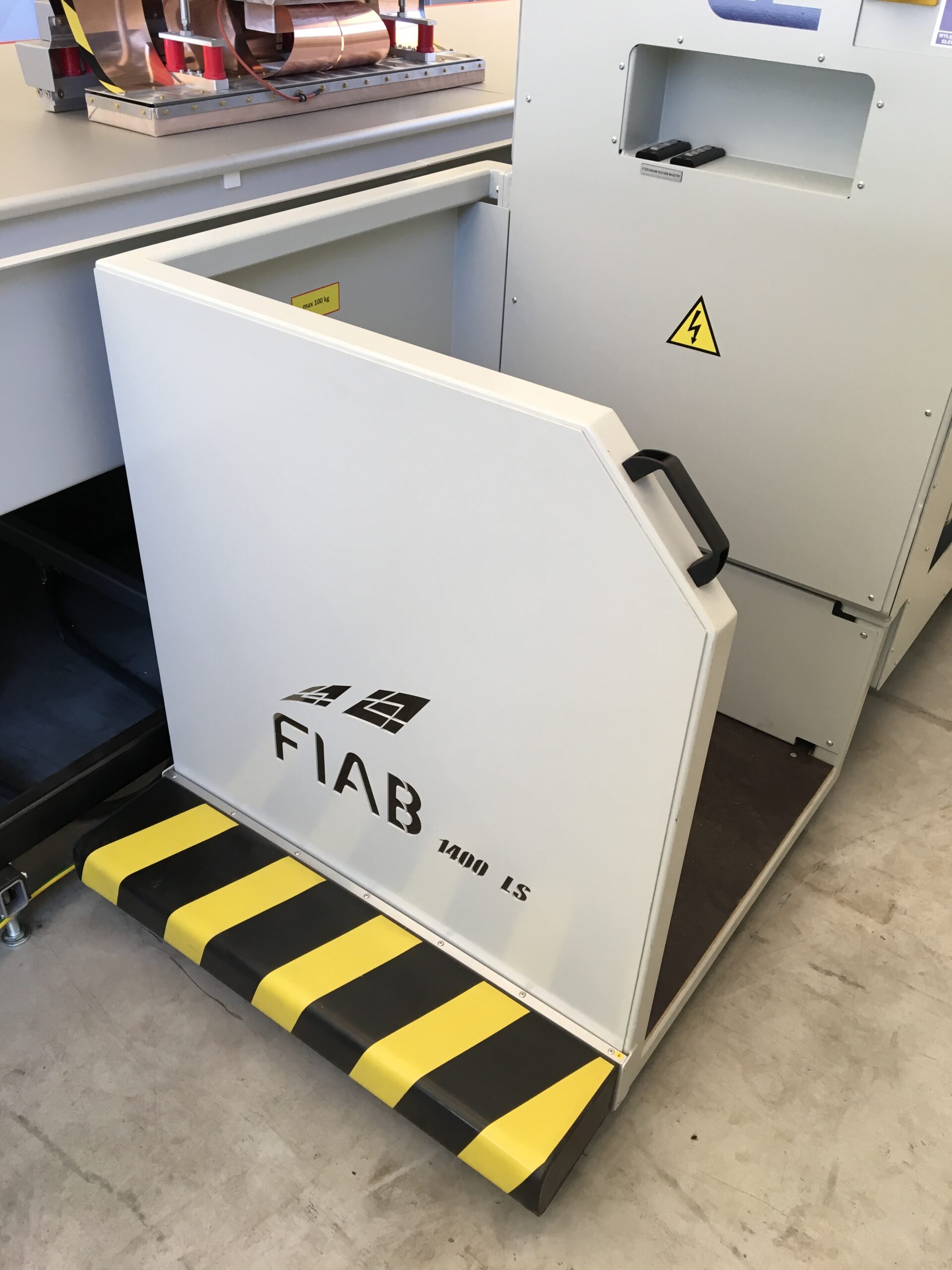

The ergonomic design of the machine, featuring side working platforms, enables comfortable operation from all sides while ensuring excellent visibility and full control of the process.

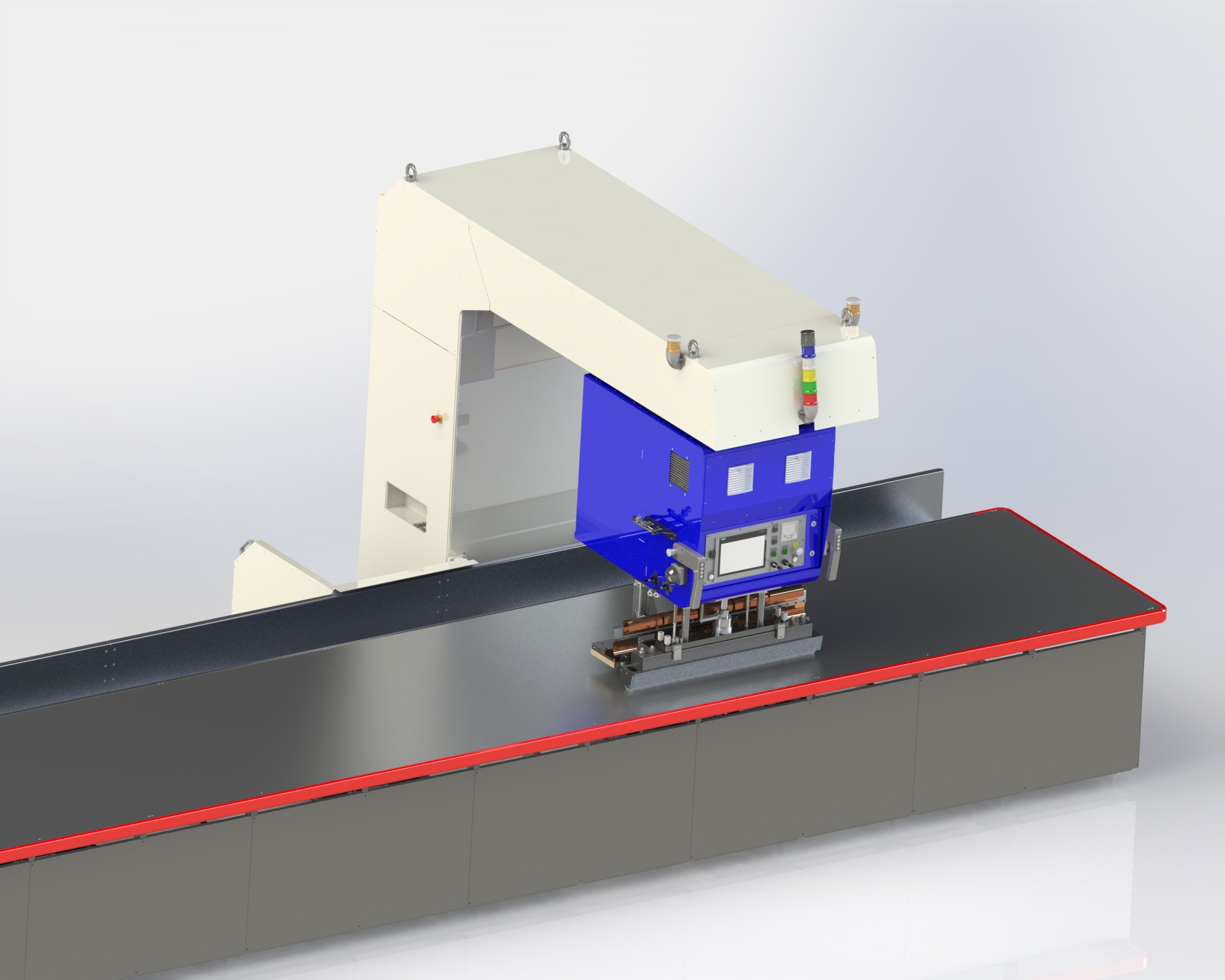

A spacious material trough allows for easy placement of large material sheets, which is particularly important for manufacturers working with large-format materials. The FIAB 1400LS performs perfectly both in large-surface welding and in precision applications requiring the electrode to be set at the correct angle.

Thanks to its design, the welding machine can operate both on an elevated table and below floor level, making it an extremely versatile solution – ideal for manufacturers with diverse production needs: from air domes, through technical tanks, to smaller, more demanding components.

Automation that transforms the process

The greatest advantage of the FIAB 1400LS is the ability to program the machine’s travel path and the operation of the welding head across different areas of the table – at any angle.

This means that welds can be performed automatically, repeatedly, and with the highest precision – regardless of the product’s geometry. In practice, this results in significantly reduced production time and a reduction in operator errors.

Designed to move differently from all others

The FIAB 1400L S is an advanced HF welding machine operating on a rail system, created for working with large PVC and TPU structures. Unlike standard machines that offer only linear movement, the 1400L S provides full working freedom thanks to its unique head kinematics.

A 360° rotating head and its movement across three axes (left–right, front–back, up–down) enable welding in any direction – without the need to reposition the material.

Applications of the HF Welding Machine – FIAB 1400L S

The high-frequency welding machine FIAB 1400LS is used in the production of PVC, TPU, and technical textile products, wherever durable, airtight, and repeatable material welding is required.

Production of tent halls and PVC structures

Production of tent halls, warehouse tents, and temporary PVC structures. The FIAB 1400L S, thanks to its programmable head travel function, is perfectly suited for manufacturing PVC film windows (Crystal), ensuring aesthetic and airtight joints.

Production in the advertising industry

Production of large-format banners, advertising tents, exhibition stands, and inflatable advertising structures. HF welding guarantees durability and high visual quality of the products.

Production of flexible tanks

Production of tanks for water, chemicals, and gases made of PVC and TPU materials. HF technology ensures full airtightness and high resistance to operating conditions.

Production of membrane architecture and tensile structures

Production of architectural membranes, roofing systems, and lightweight tensile structures, where weld strength and aesthetics are critical.

Production of industrial and agricultural membranes

Production of membranes for biogas plants, silo covers, and protective shields. HF welding enables the creation of large, airtight surfaces.

Functionality and technologies

Recipes – fast parameter change and full production repeatability:

The welding machine allows saving and instantly recalling ready-made parameter sets for different products and applications. Each recipe includes key process settings – such as welding time, power, pressure force, and cooling time – all essential to achieve durable and visually consistent joints.

Once a recipe is saved, the operator can switch settings in just two clicks – without guessing or manual adjustment. This means faster changeovers, lower risk of errors, and higher production efficiency.

SBS System – step welding for demanding materials:

The advanced SBS system has been developed for materials that are difficult to weld, including flame-retardant and multi-layer materials.

Thanks to a proprietary software solution, you can program multiple welding stages within a single cycle. In practice, this means the material is gradually processed using different parameters, enabling controlled and reliable bonding.

The SBS system expands production capabilities and provides a clear advantage wherever standard welding processes are not sufficient.

Technical data of the FIAB 1400L S welding machine

Output power	10 kW \| 13 kW \| 17 kW \| 22 kW
Voltage	3 x 400 V / 50 Hz
Main fuse	C63A
Working frequency	27.12 MHz ± 0.6%
Cooling	oil cooling
Press pressure	1920 kG
Maximum electrode length	max. 1100 mm
Welding area	max. 880 cm²
Electrode change system	by touchscreen panel
Arc protection system	FIAB Security System
Finger protection system	FIAB Fingerprotection
Compressed air supply	min. 7 bar / max. 9 bar
Compressed air consumption	9680 cm³ / cycle
Touch panel	Beckhoff 12''
Control system	Beckhoff
Machine weight	3200 kg
Rotating head	360° automatic
Transverse movement (Y-axis)	1200 mm
Table length	2 m segments
Table weight	200 kg / 2 m segment
Material trough	large
