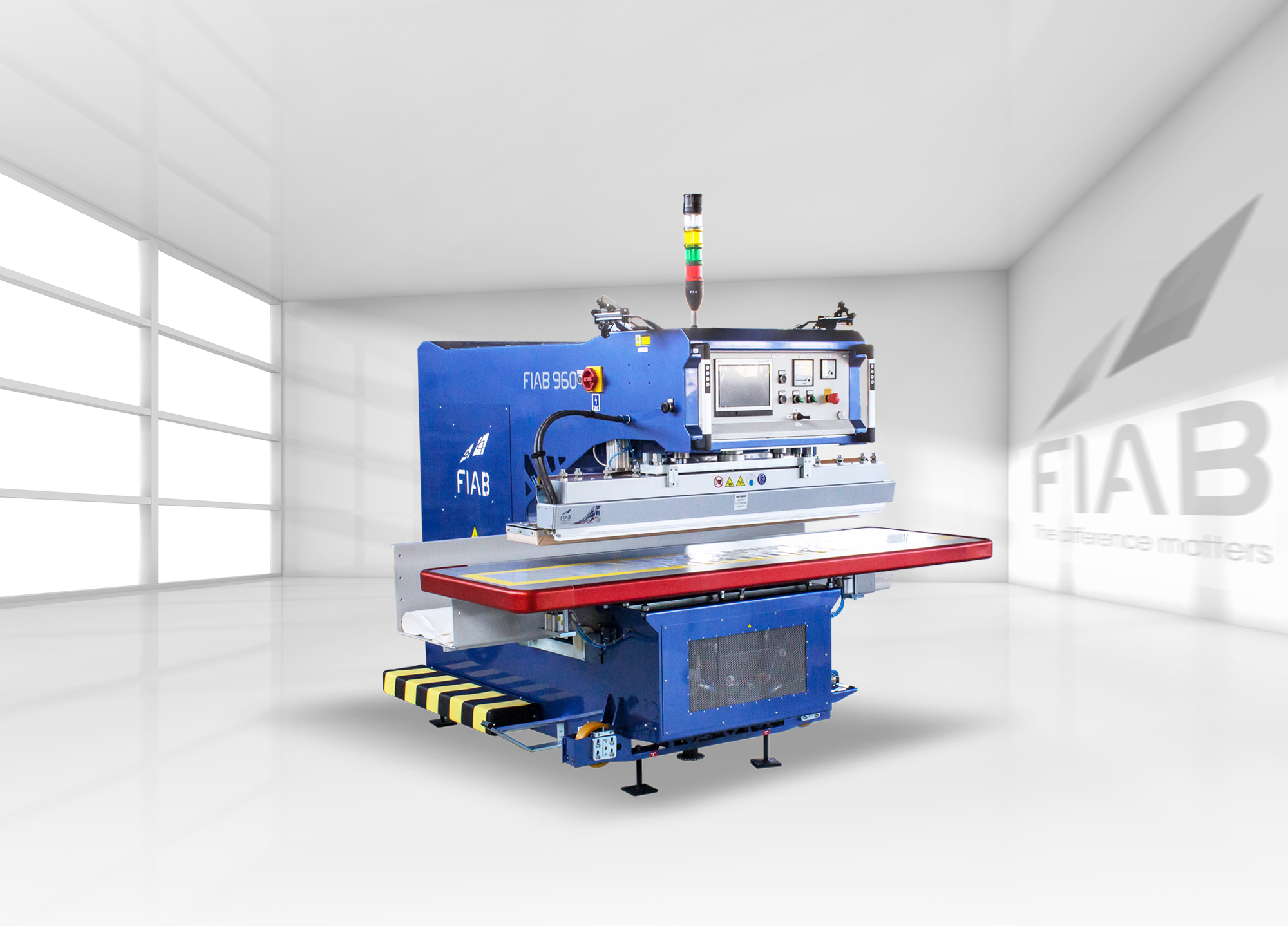

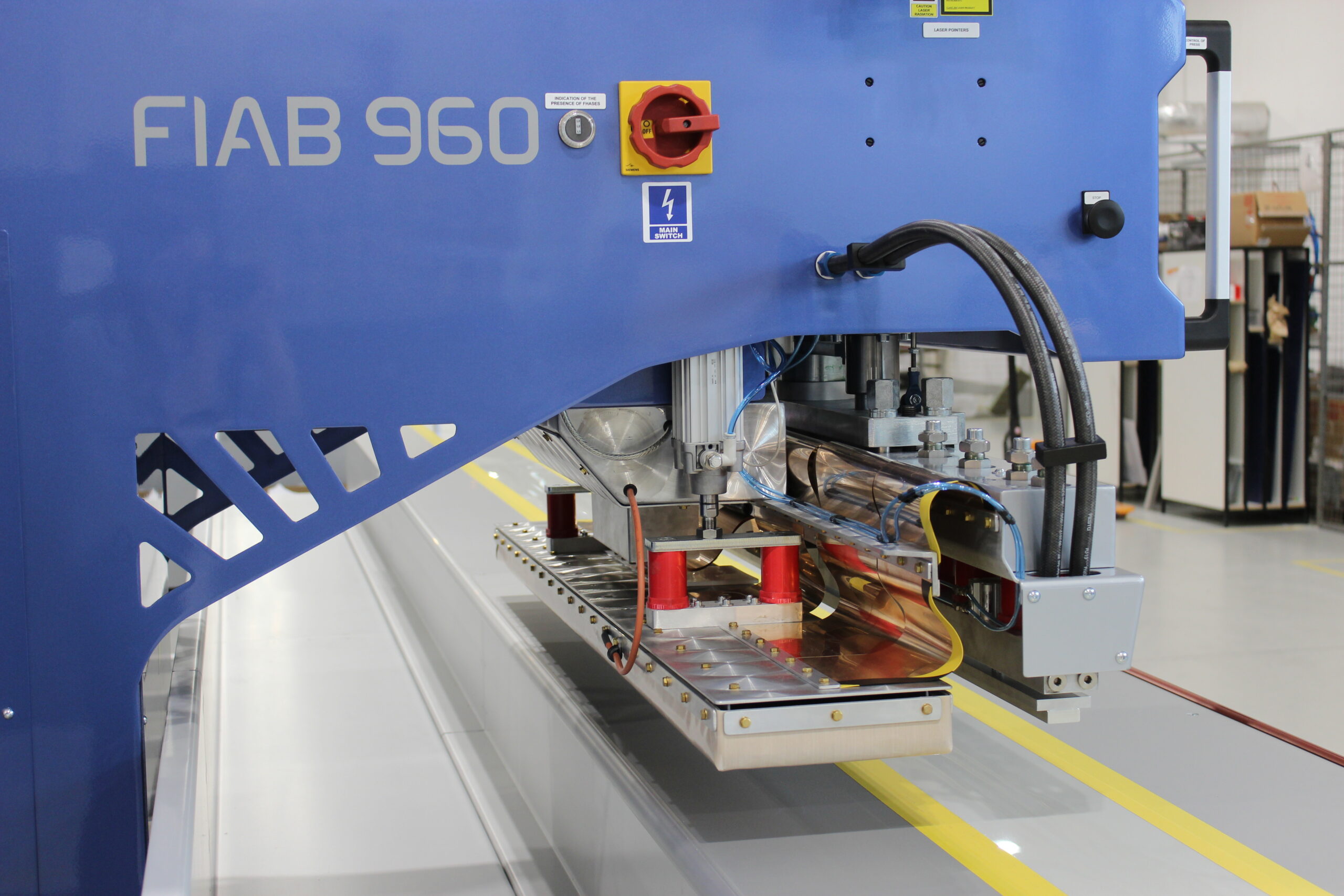

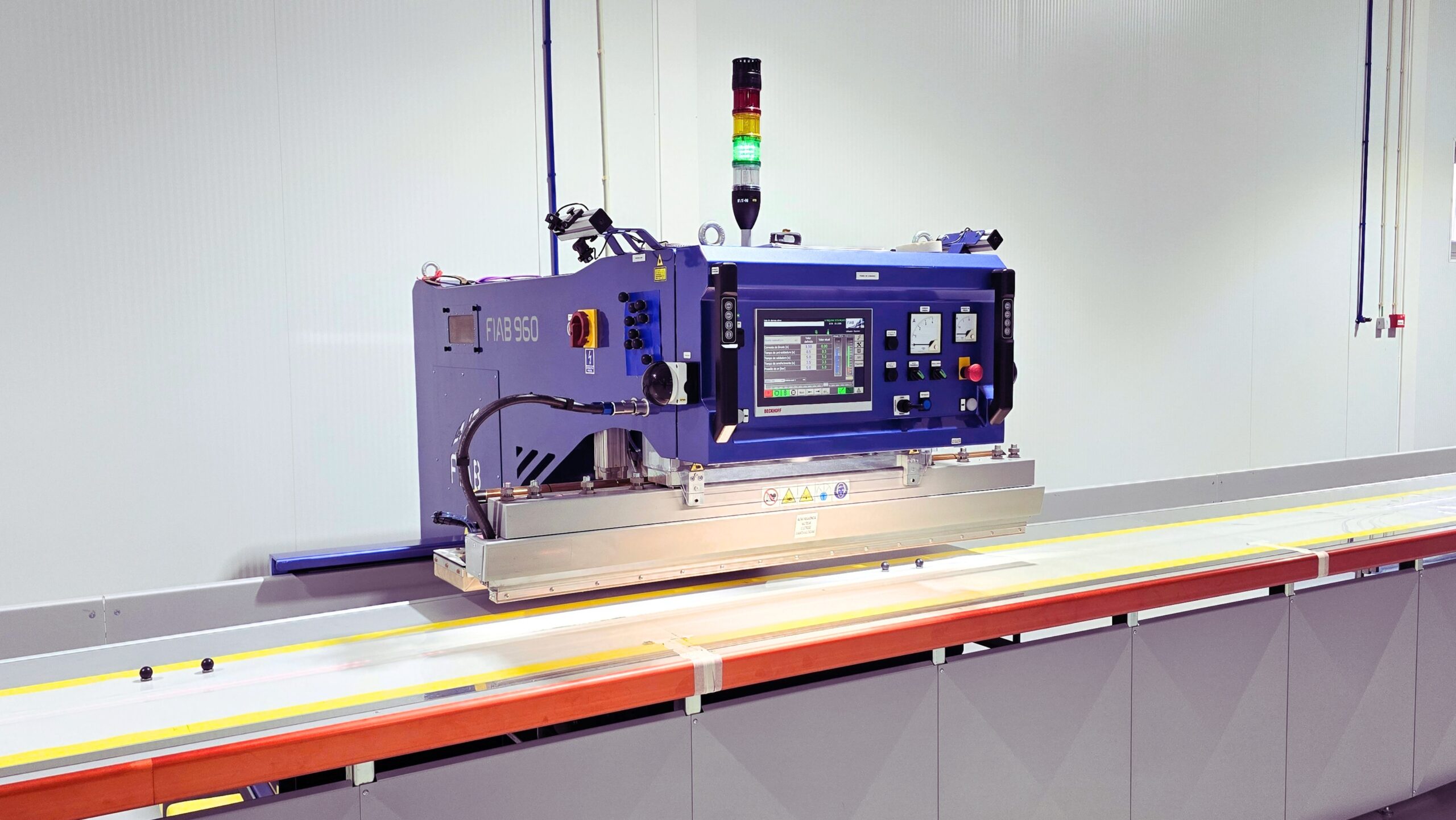

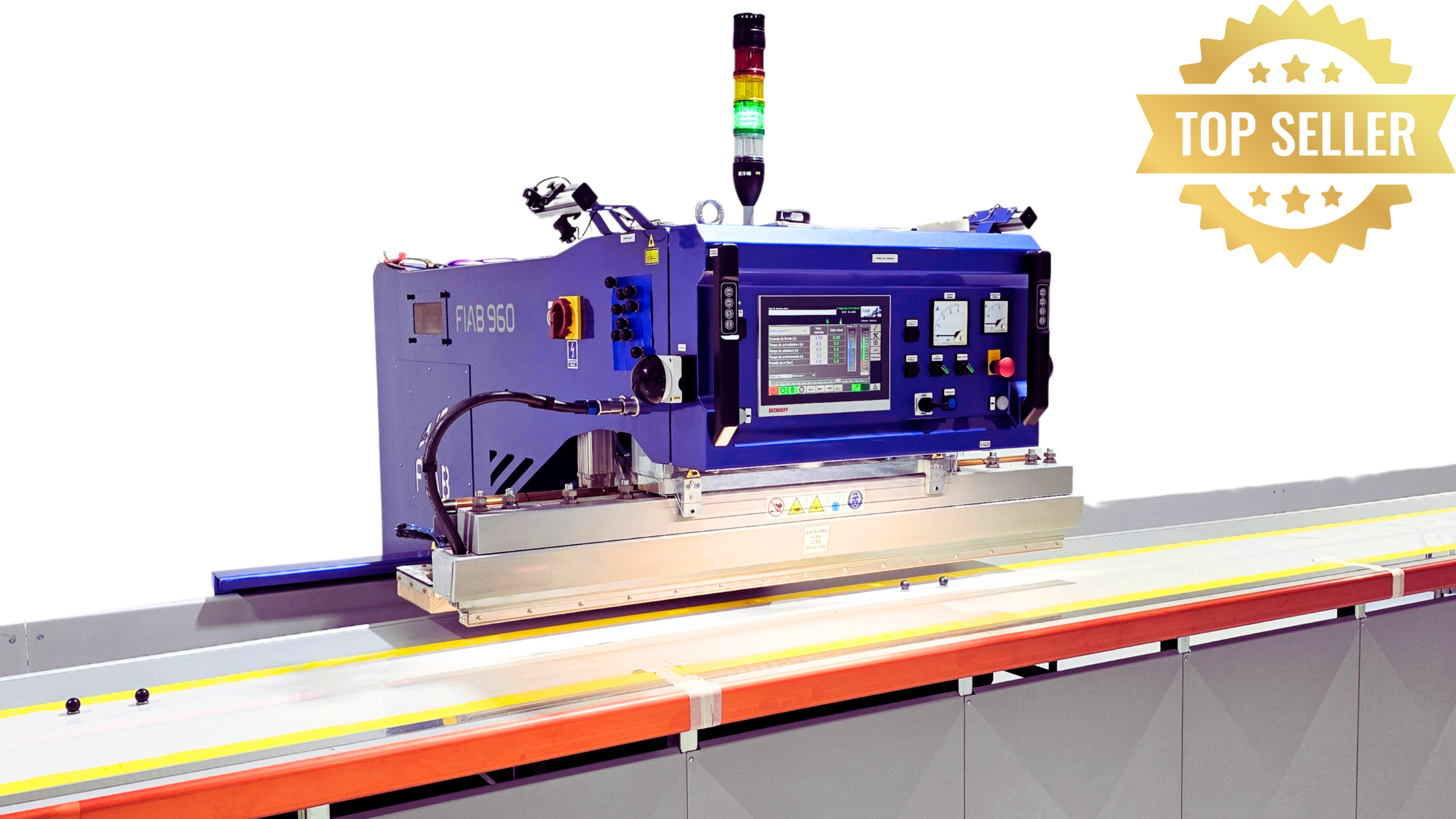

The FIAB 960 is a bestseller and the most frequently chosen FIAB high-frequency welding machine model in the world. Its extraordinary versatility and wealth of extension options exceeded the designers' expectations – it is a comprehensive solution that works both as a standalone unit and as a key element of a production line.

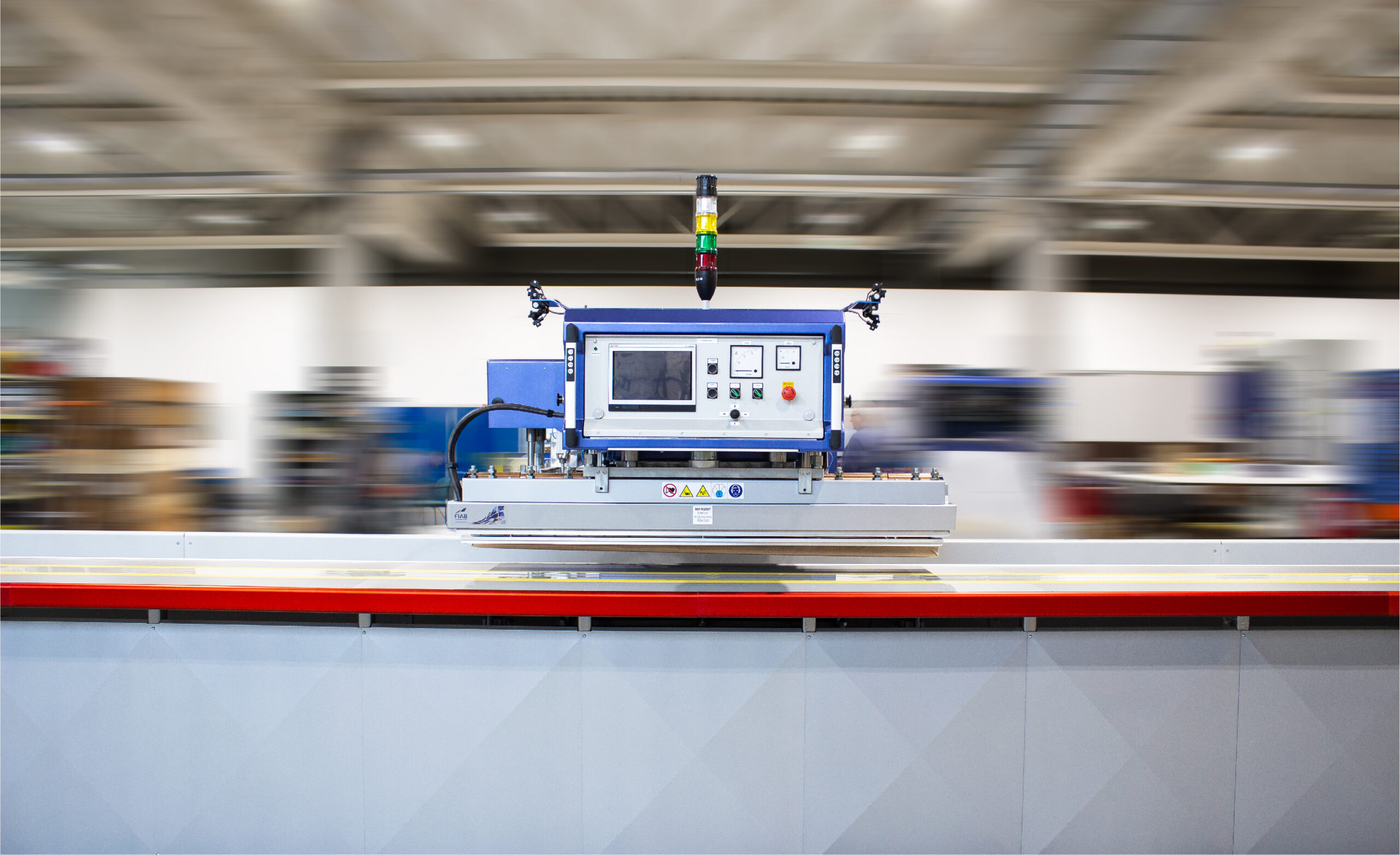

The welding machine can work in a stationary version (on transport wheels) or as a mobile version – ideal for fast welding of large amounts of meters in a short time. Moreover, the stationary FIAB 960 can be expanded at any time with a rail track of up to 100 meters, transforming it into a mobile production center.
Personalization? Practically unlimited. From welding parameter settings (time, cooling, electrode height, travel speed) to full process automation and the ability to easily change recipes.

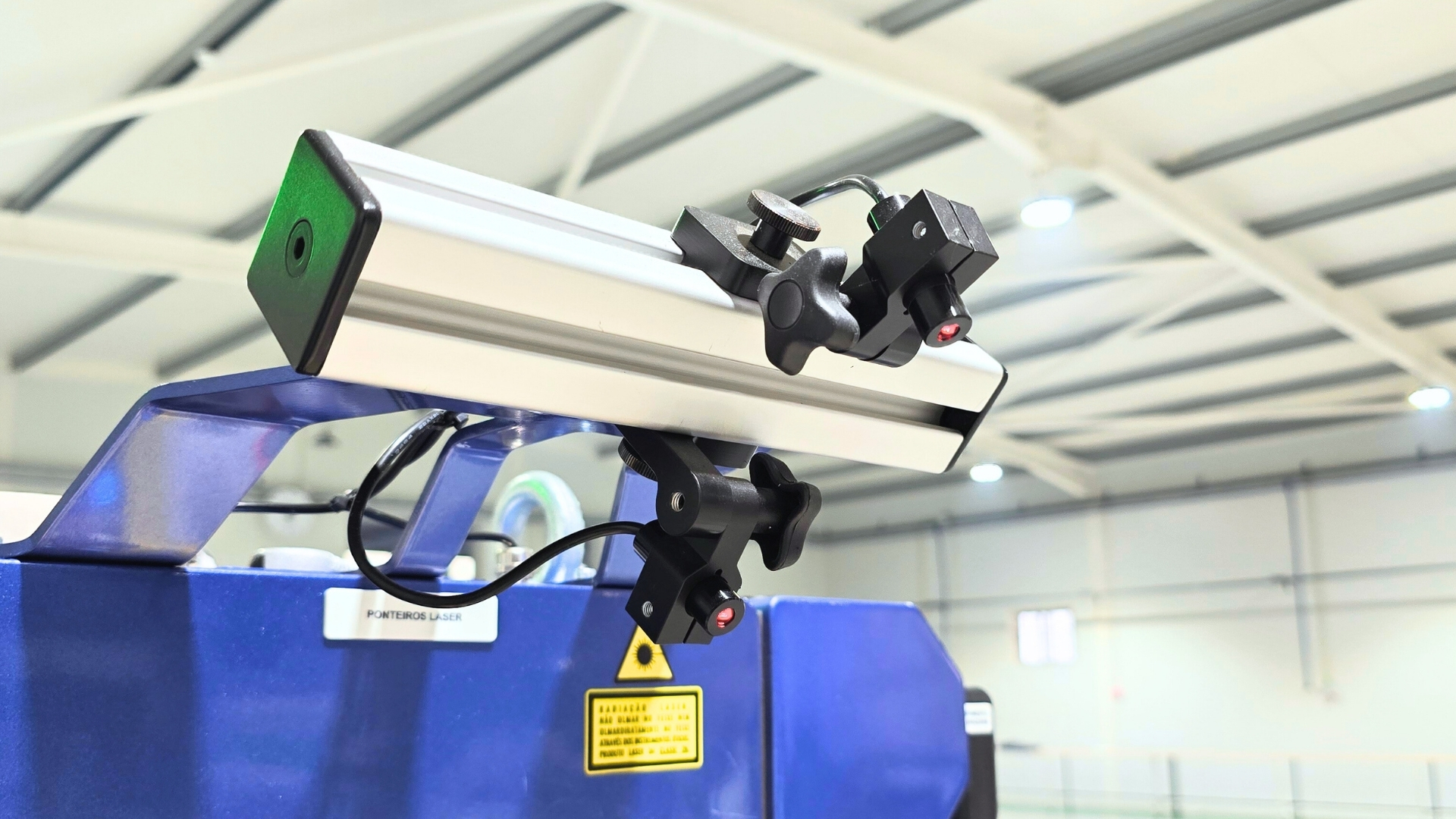

The FIAB 960 also offers a rich selection of additional accessories – such as laser indicators, impulse adapter or side working platforms – which allow you to adapt the machine to your exact needs. A multitude of electrodes from simple ones with logos to electrodes for window welding in the production of sliding doors. Its high power ensures it can handle any material susceptible to high-frequency welding.
Most commonly used for the production of tent halls, biogas membranes, oil or water tanks, air domes and much, much more.
If you operate in the following industries:
Invest in technology that grows with your business. Invest in production stability, consistent quality, and the ability to scale without technological limitations.
Are you looking for a high-frequency welder that can handle large formats, demanding materials, and growing production needs? The FIAB 960 is a proven choice for companies worldwide – a model that combines performance, flexibility, and scalability in one machine.
This is not “just another welder.” It’s a solution that adapts to your business – whether you produce individual components or manage a full production line.
The FIAB 960 gives you complete freedom of configuration – from welding parameters to additional equipment. Positioning lasers, pulse adapters, work platforms, or dedicated electrodes (e.g., for windows in sliding systems) – all designed to help you achieve maximum repeatability and product quality.

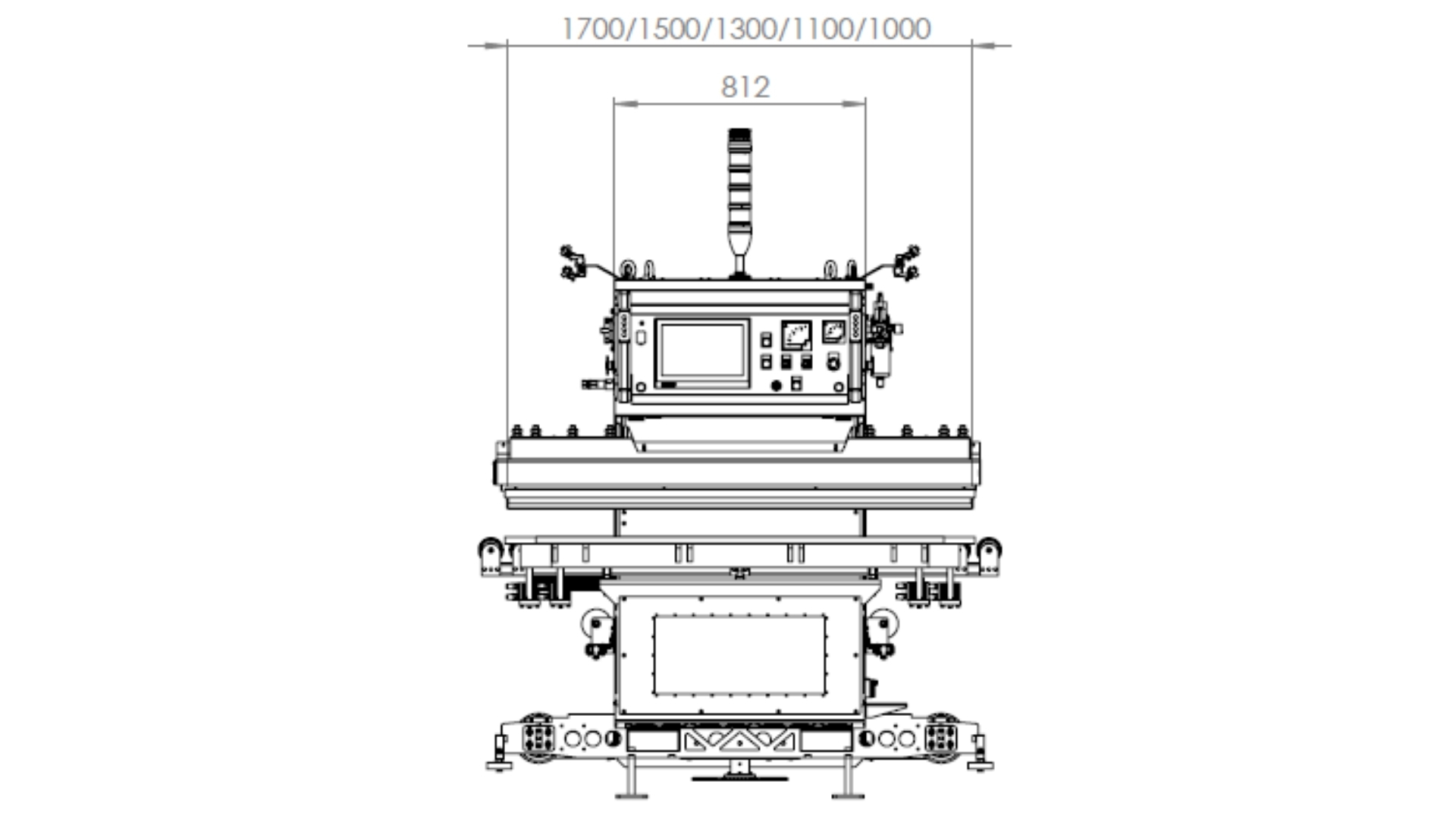

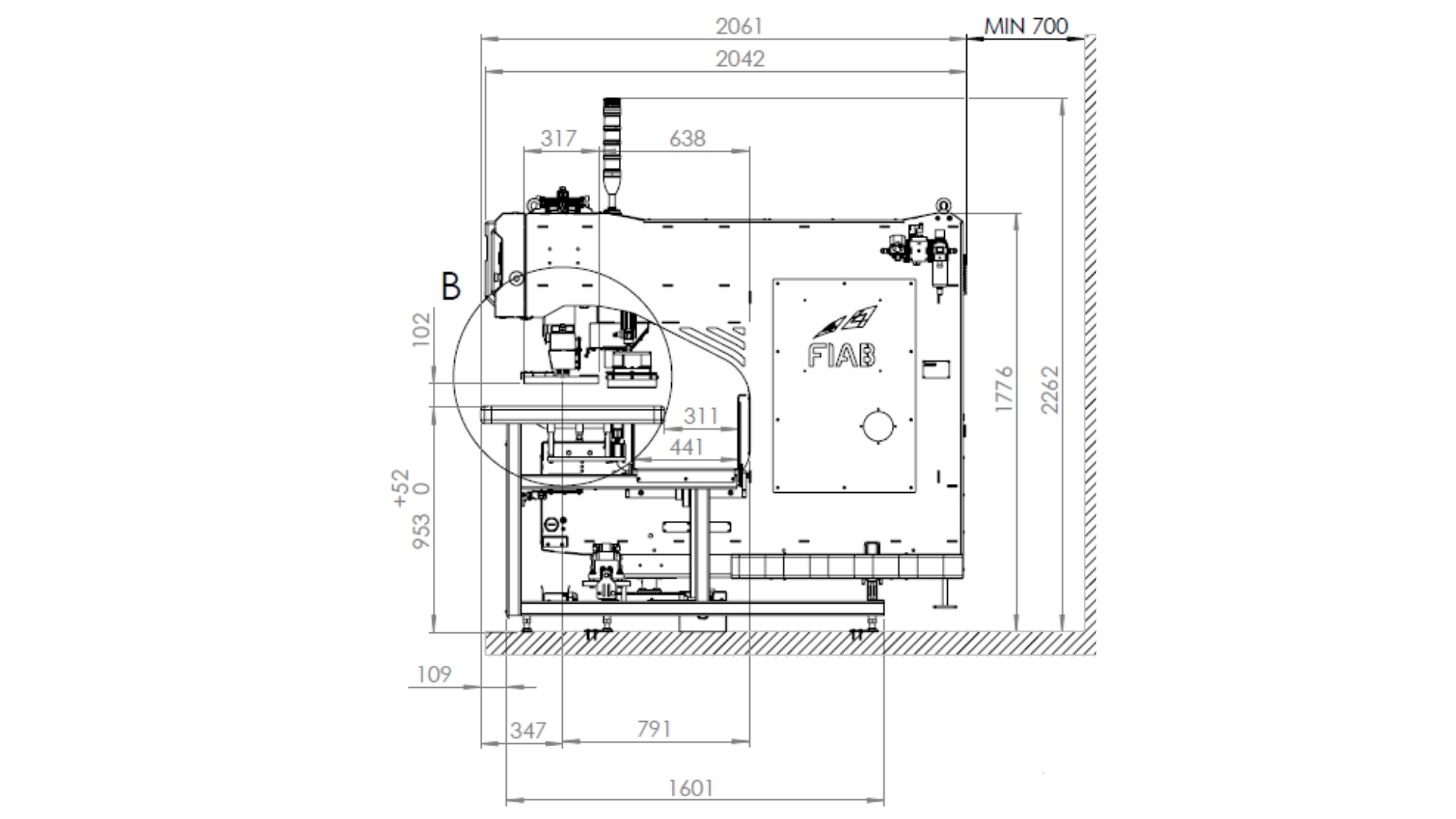

The FIAB 960XL is a twin model of the F960, with one key difference – an increased space between the grounding bar and the electrode, resulting in a wider worktable and a larger operating area.

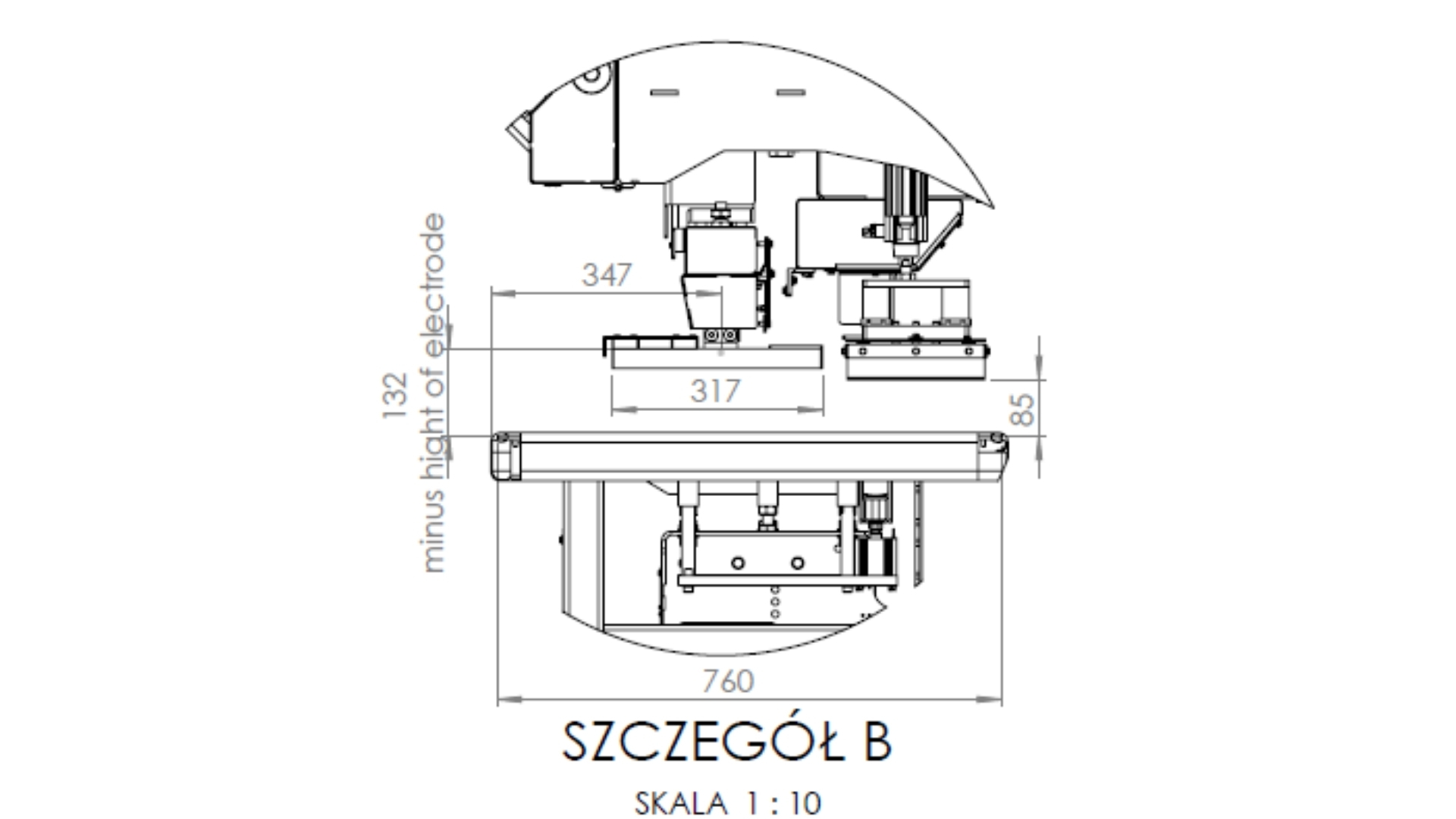

This solution allows the use of electrodes up to 317 mm wide, significantly expanding production possibilities – especially for wide seams and applications requiring non-standard electrode shapes.
| Output power | 10kW | 13kW | 17kW | 22kW |
| Voltage | 3 x 400 V/50 Hz |
| Main fuse | C63A |
| Working frequency | 27.12 MHz ± 0.6% |
| Cooling unit | oil cooling |
| Press presure | 1920 kG |
| Tool holder size | max. 2000 mm |
| Welding surface | max. 880 cm2 |
| Electrode exchange system | through touch panel |
| Antiflash unit | FIAB Security System |
| Finger protection system | FIAB Fingerprotection |
| Compressed air supply | min. 7 bar / max. 9 bar |
| Compressed air consumption | 1600 cm³ / cycle |
| Operator panel | Beckhoff 12" |
| Control system | Beckhoff |
| Machine's weight | 1450 kg |
| Table lenght | 2 m sections |
| Table weight | 160 kg / section (2 m) |
| Material box | big |
