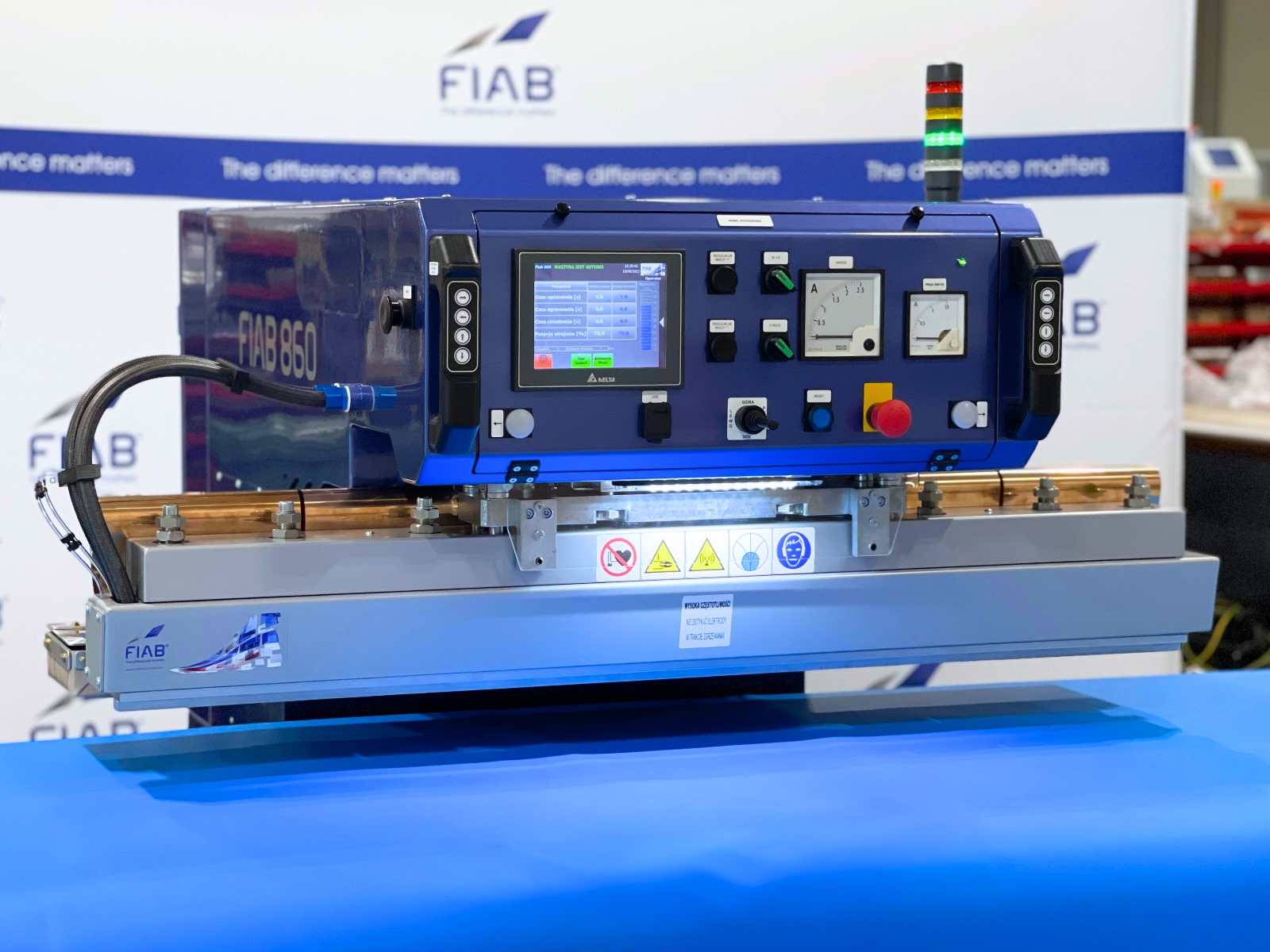

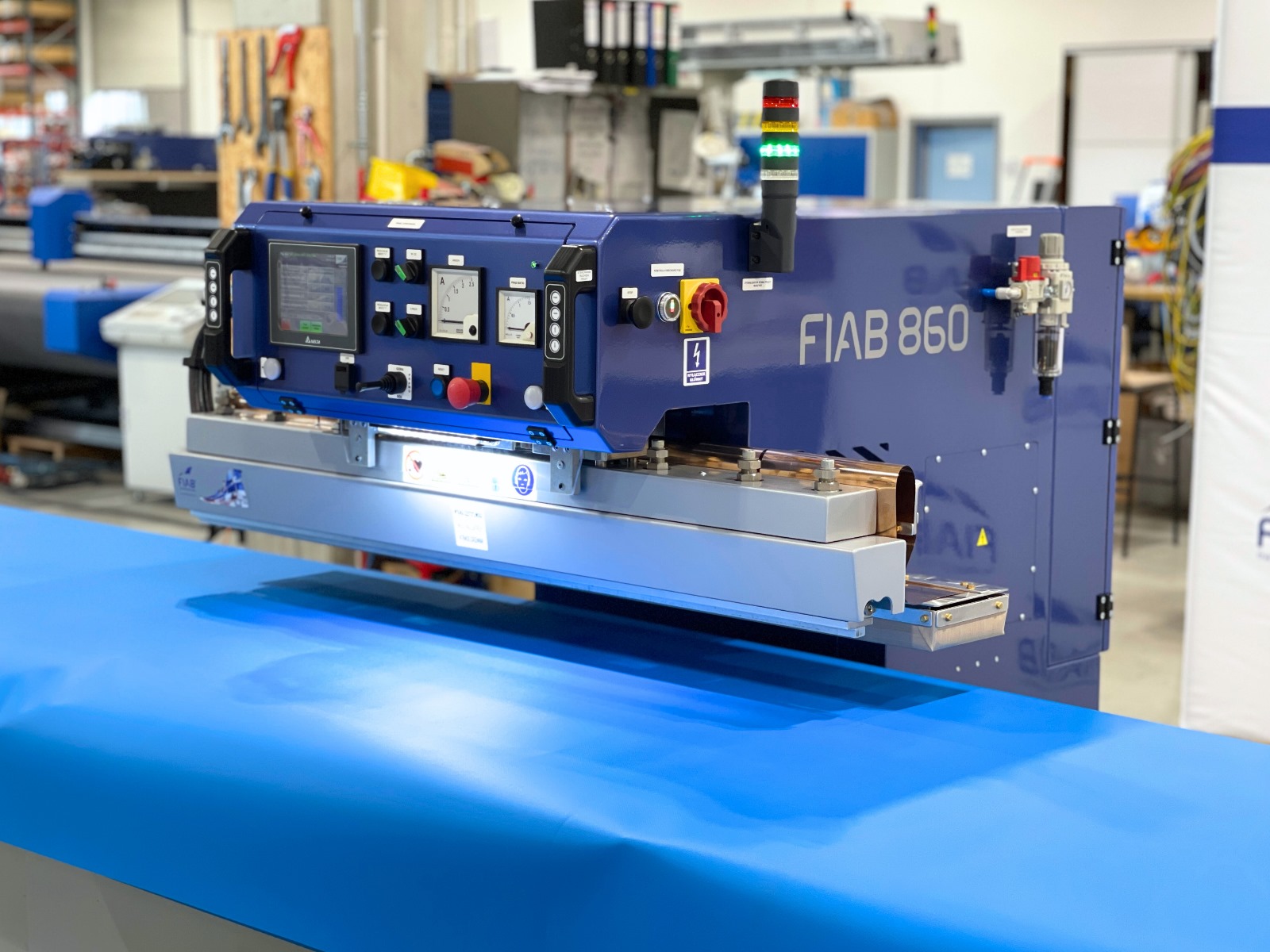

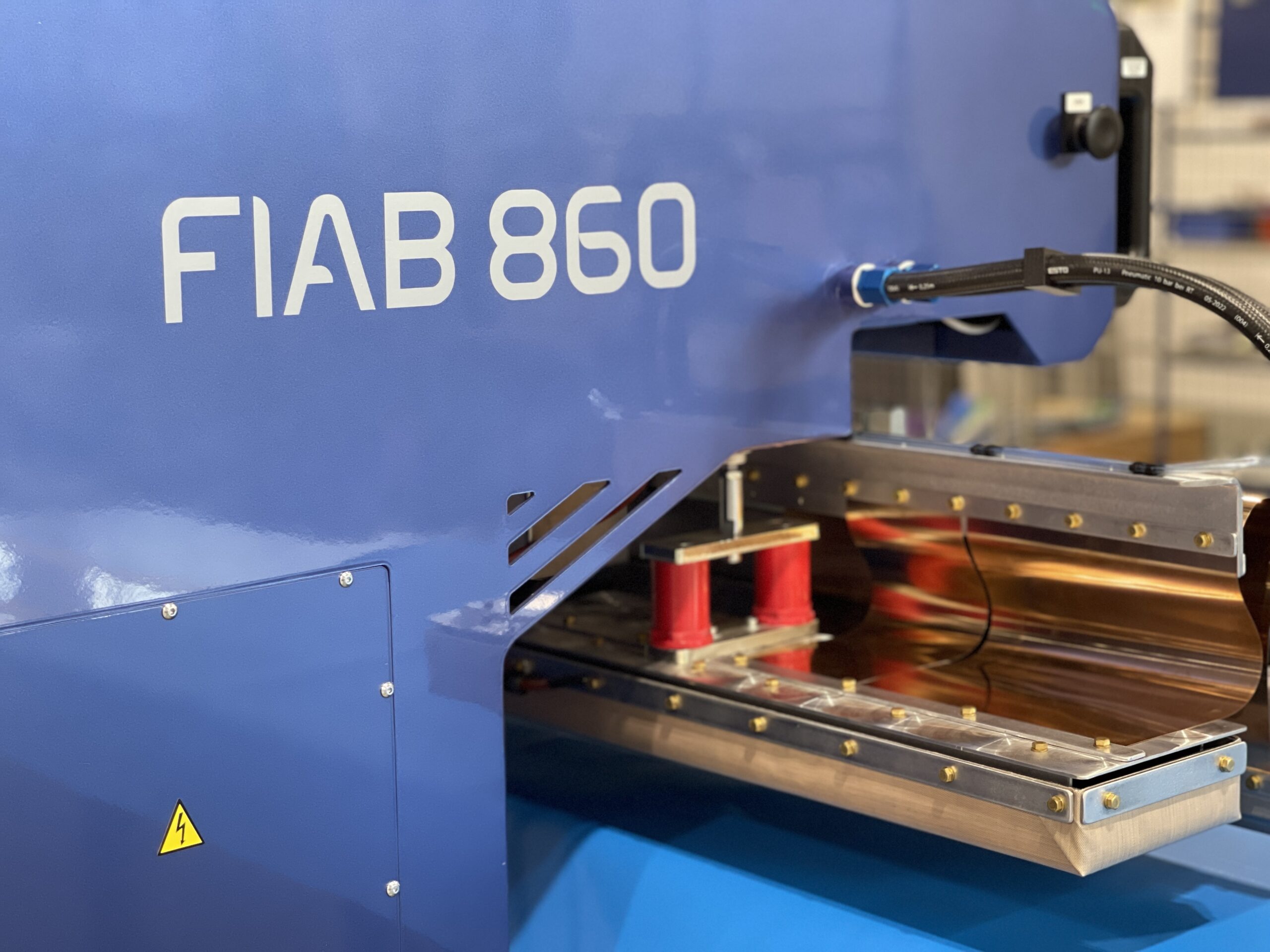

The FIAB 860 with 8 kW power is an economical and highly versatile solution for manufacturers of tarpaulins, structures and stretch ceilings, tents, covers, and all products made from coated technical fabrics such as PVC, TPU, or PU.
It is an ideal alternative to hot air welding machines – it ensures significantly higher weld tightness and durability, as well as repeatability and aesthetic quality. The process is stable and independent of external factors or operator error. Additionally, HF technology eliminates the issue of thermal fumes – in simple terms: the process is clean and does not generate smoke.
Available in a stationary or mobile version, it performs perfectly both in medium-scale production and as an entry-level solution for companies just starting with high-frequency technology.
The machine has been designed for:
manufacturers who want to start working with HF technology,
companies looking for a simple and cost-effective solution,
production facilities aiming to improve quality and repeatability without investing in large-scale systems.
The FIAB 860 is a simplified version of the F960, designed to offer an optimal balance between price and capabilities.
hangars, tents, and medium-sized tent halls
flexible tanks and bags – including water bags, feed and hay bags, as well as transport and storage bags
glampings and outdoor structures
stretch ceilings and decorative architectural solutions
smaller membrane structures – awnings, sun and rain sails
trailer tarpaulins and transport covers, including industrial curtains
transparent enclosures (crystal) – for gazebos, pergolas, restaurant gardens, as well as cold storage partitions and thermal covers
covers and protective materials – ground films, pool covers
pneumatic products – such as inflatable boats, medium-sized pneumatic structures, or advertising banners

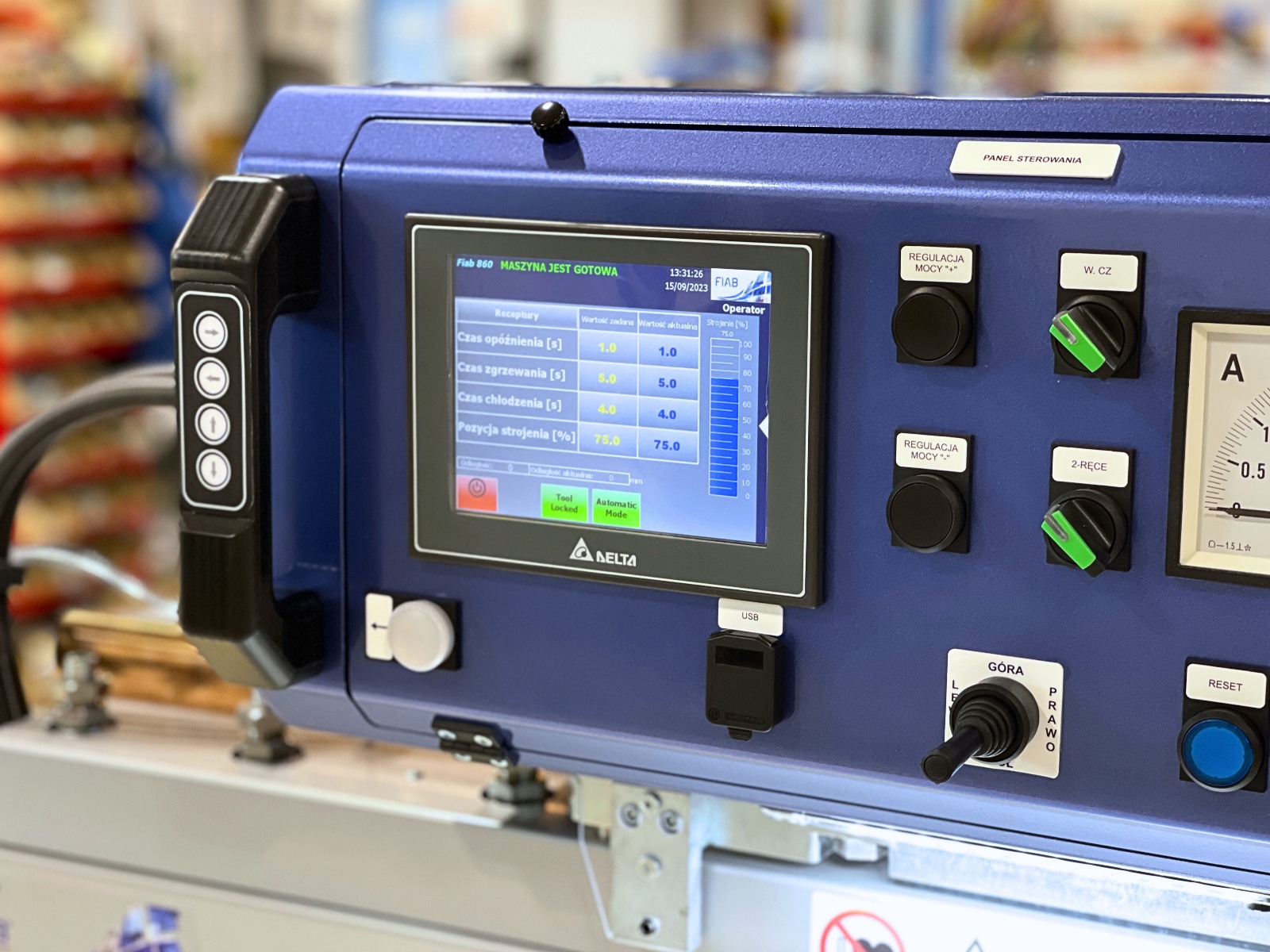

The welding machine allows saving and instantly recalling ready-made parameter sets for different products and applications. Each recipe includes key process settings – such as welding time, power, pressure force, and cooling time – necessary to achieve durable and aesthetically consistent joints.
Once a recipe is saved, the operator can change settings in just two clicks – without guessing or manual adjustments. This means faster changeovers, a lower risk of errors, and higher production efficiency.

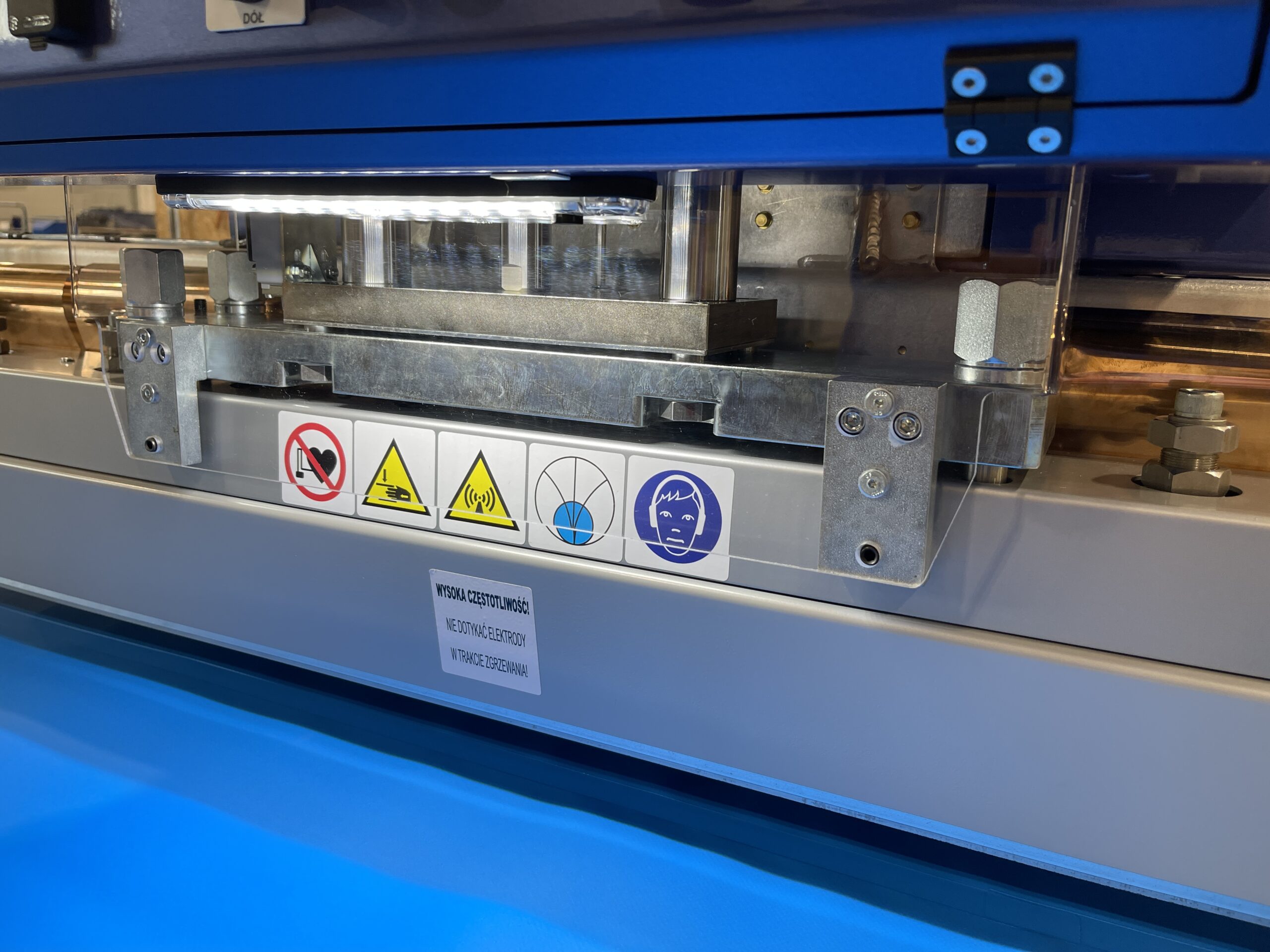

The dual laser system facilitates accurate positioning of the material before welding, ensuring perfect alignment with the weld line.
This simple solution significantly improves operator comfort, which in turn enhances efficiency and the quality of the final product.
The advanced SBS system has been designed for materials that are difficult to weld, including non-flammable and multilayer materials.
Thanks to a proprietary software solution, you can program multiple welding stages within a single cycle. In practice, this means the material is gradually processed using different parameters, enabling controlled and effective joining.
The SBS system is a solution that expands production capabilities and provides an advantage wherever standard welding is not sufficient.
A solution designed for companies that want to maintain flexibility for future development. By choosing the stationary version today, you do not limit your ability to expand later.

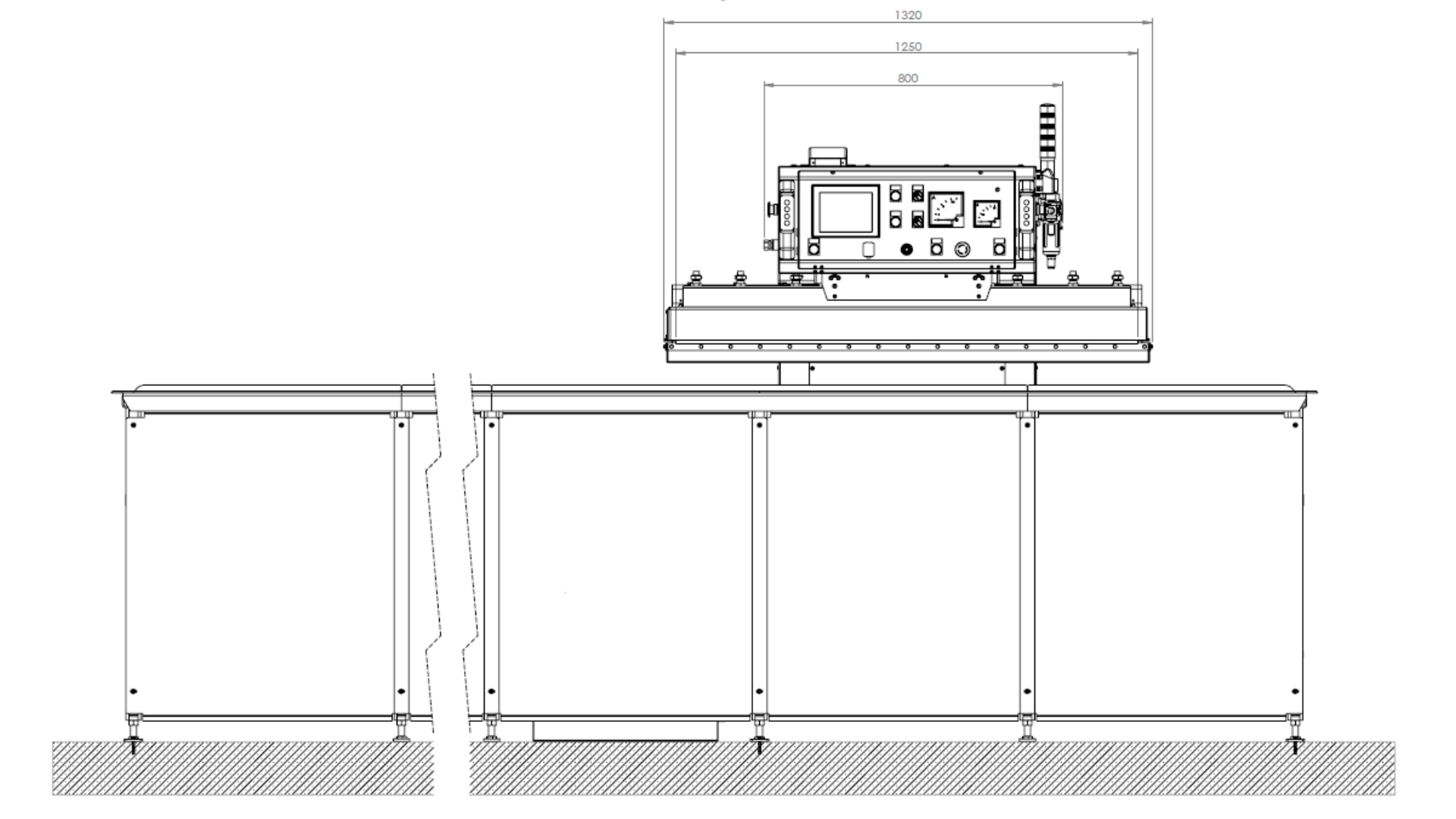

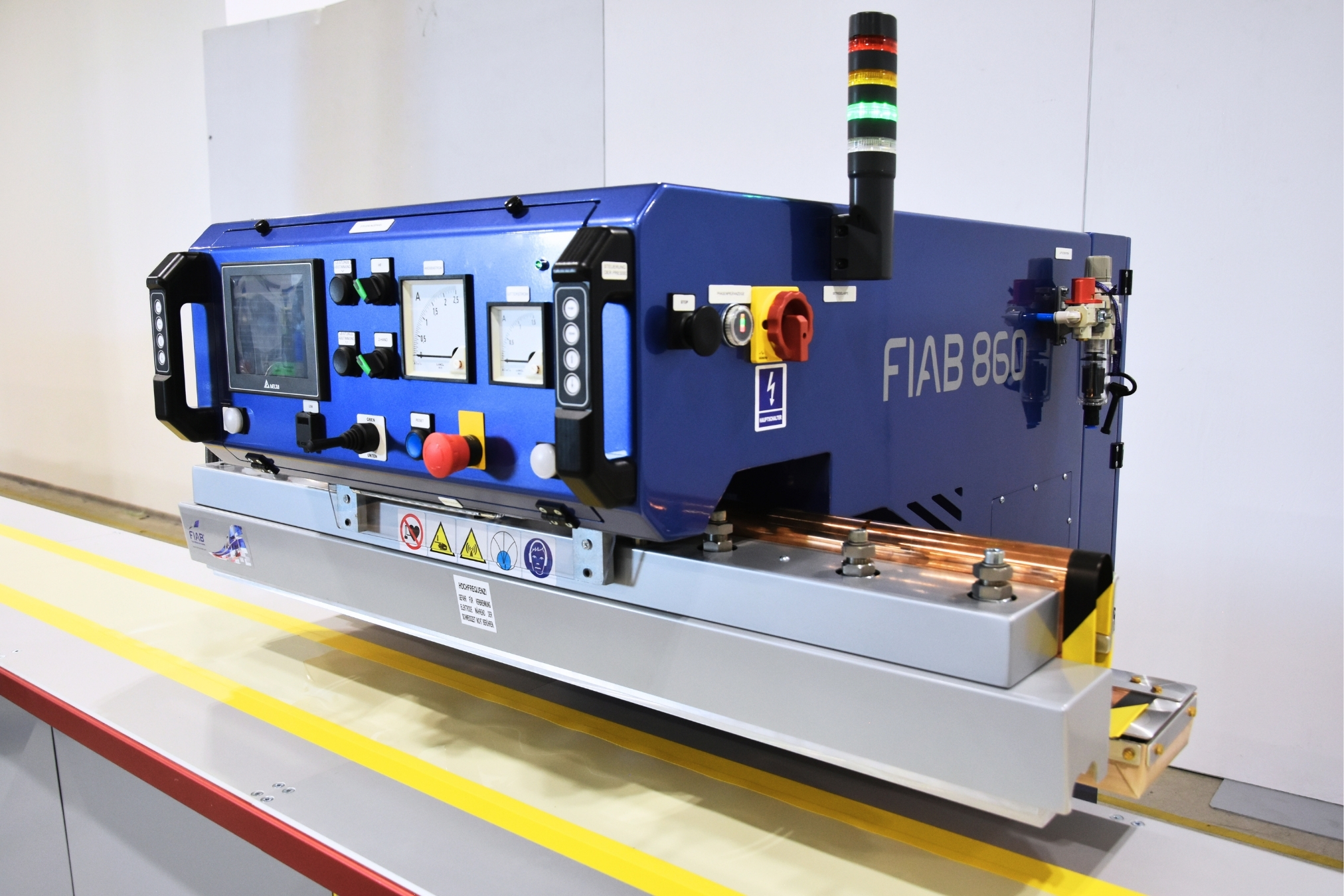

The stationary machine is structurally prepared for a quick and seamless conversion into a mobile version at any time, enabling work with large material formats and long welds.
| Output power | 8 kW |
| Voltage | 3 x 400 V/50 Hz |
| Main fuse | D32A |
| Working frequency | 27.12 MHz ± 0.6% |
| Cooling unit | air / optional oil cooling |
| Press pressure | 481 kg |
| Tool holder size | max. 1250 mm |
| Welding surface | max. 320 mm |
| Electrode exchange system | through touch panel |
| Antiflash unit | FIAB Security System |
| Finger protection system | FIAB Fingerprotection |
| Compressed air supply | min. 7 bar / max. 9 bar |
| Compressed air consumption | 1600 cm³ / cycle |
| Operator panel | Delta 7'' |
| Control system | Beckhoff |
| Machine's weight | 600 kg |
| Table lenght | 1,45 m section |
| Table weight | 78 kg / section (1,45 m) |
| Material box | small |
