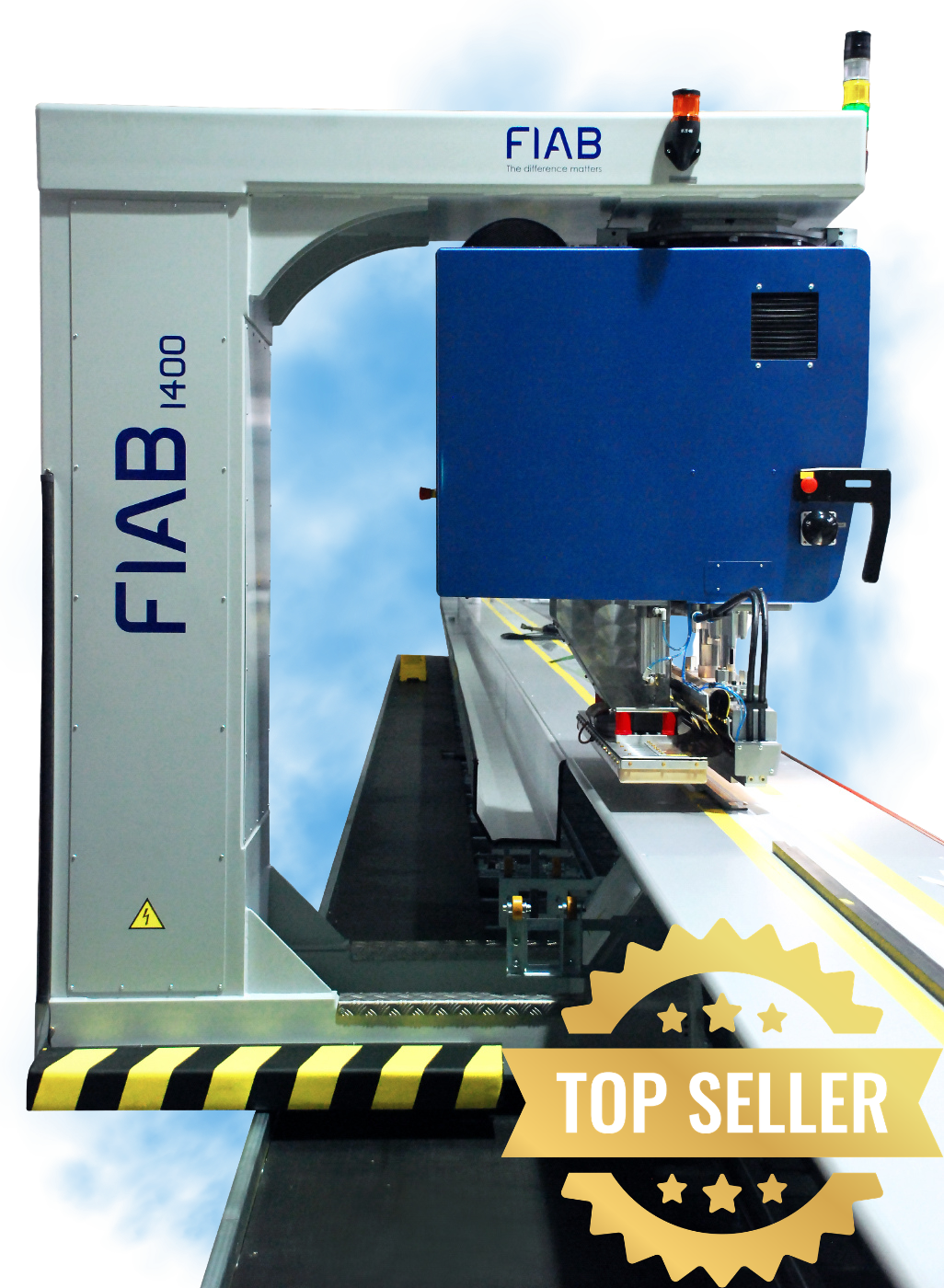

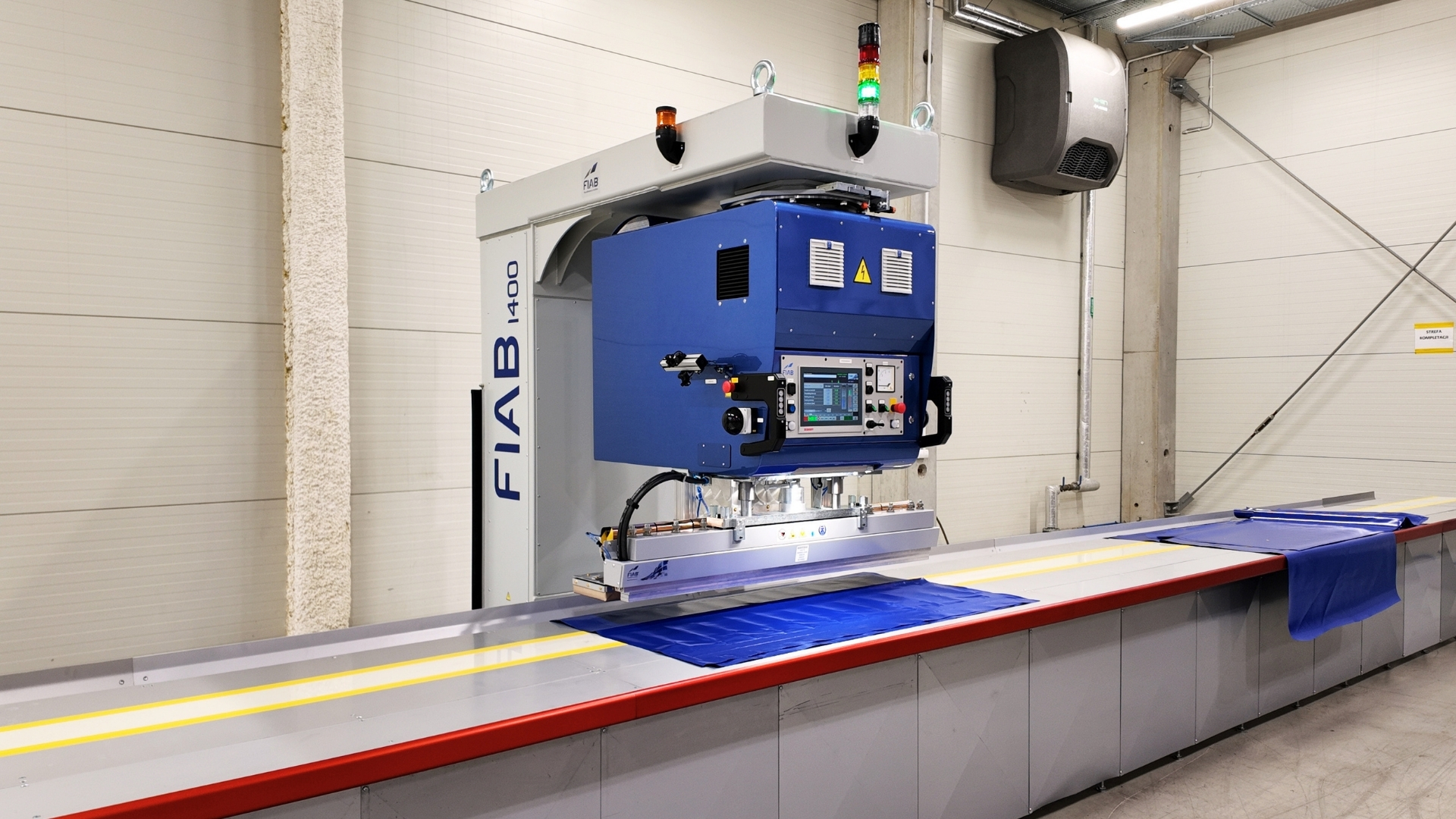

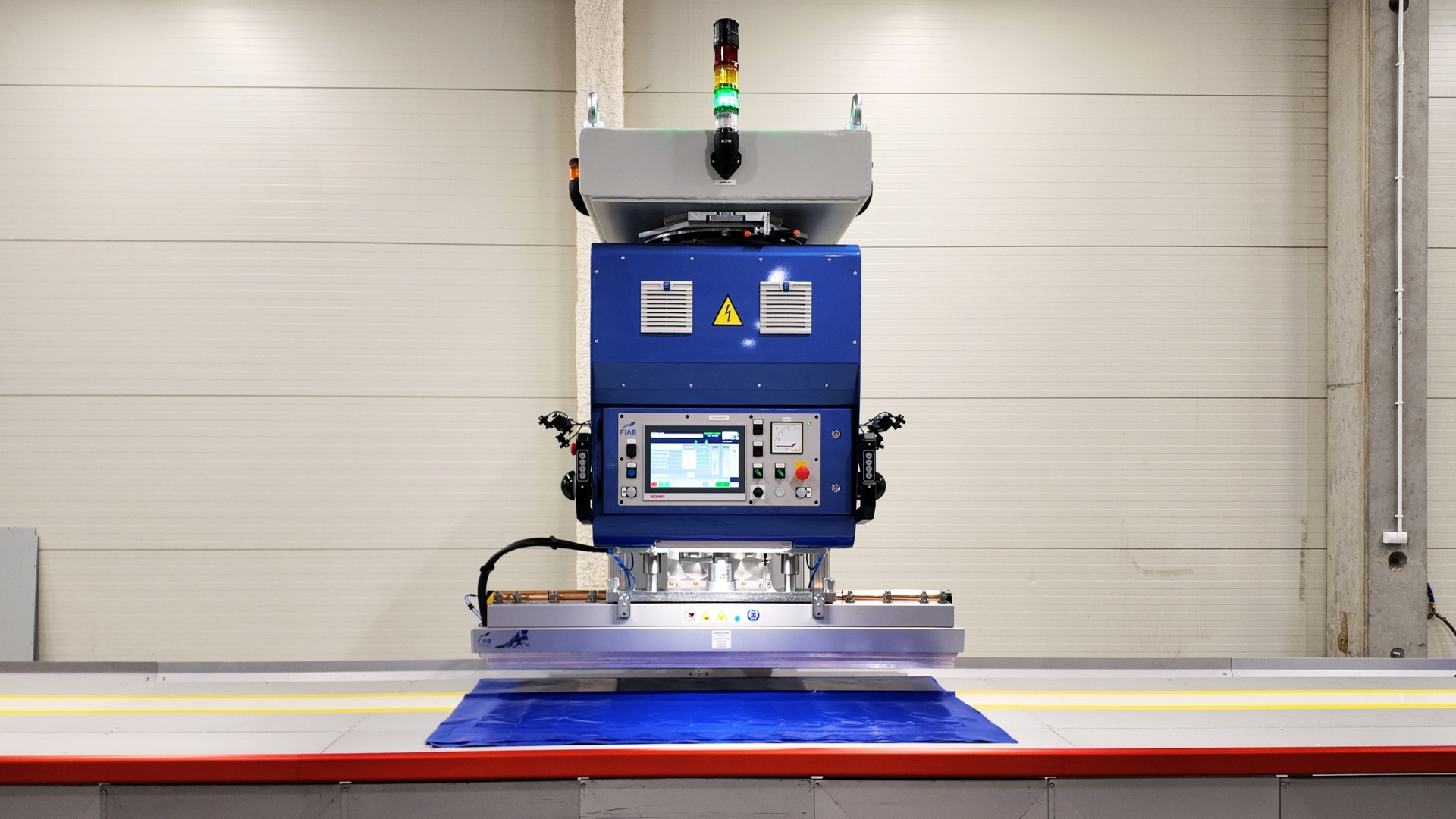

FIAB 1400 – Full control of the welding process from inside the machine

A premium-class, versatile welding machine for large PVC and TPU structures.

FIAB 1400 is the premium version of our proven solution, designed for maximum operator comfort and top-level efficiency. One of the most versatile and popular high-frequency welders in the FIAB range, it is built for advanced users and demanding production environments. It combines flexibility, ergonomics, and high performance in one intelligent system.

Thanks to its unique design and configuration options, FIAB 1400 sets new standards in operator comfort and production efficiency.

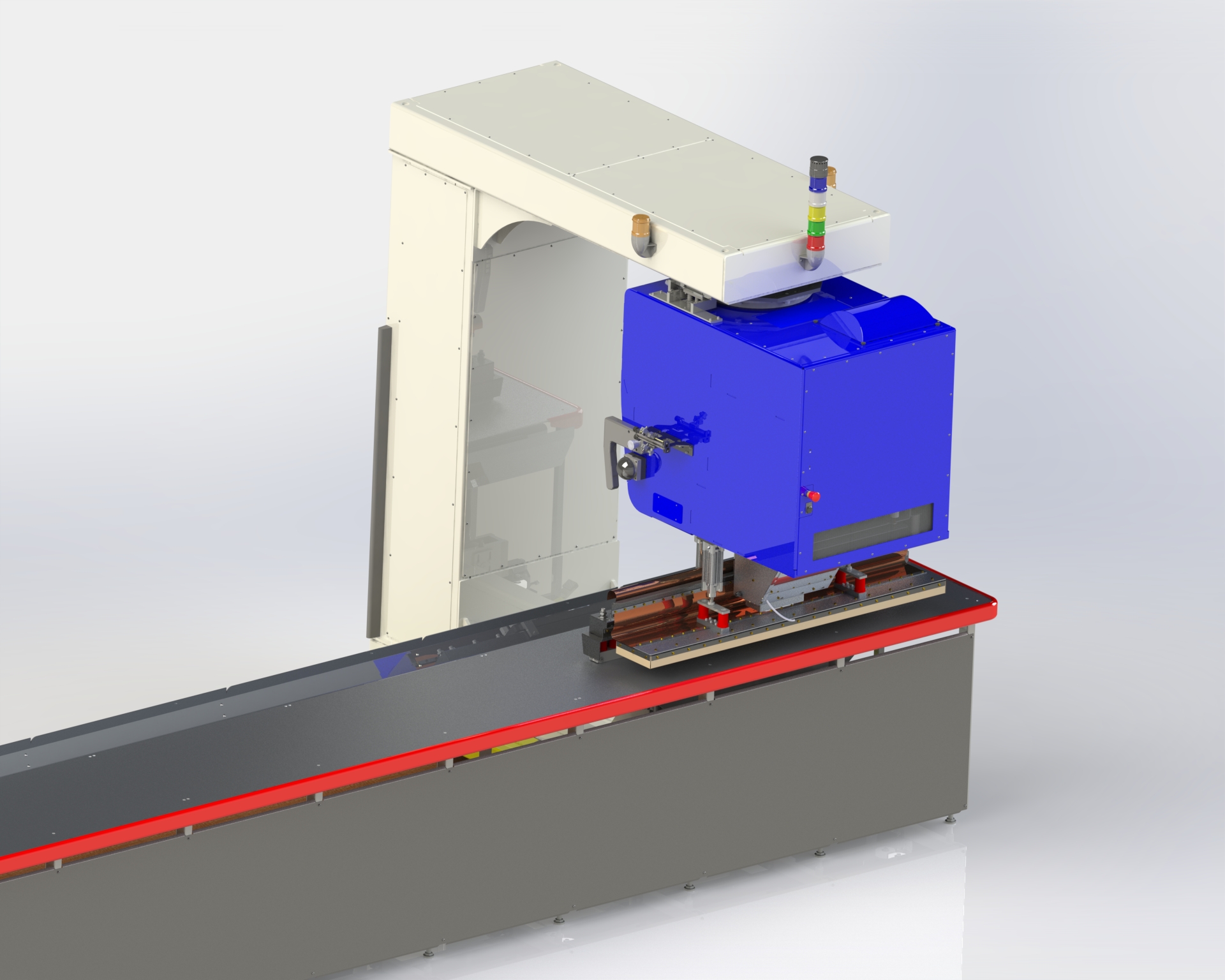

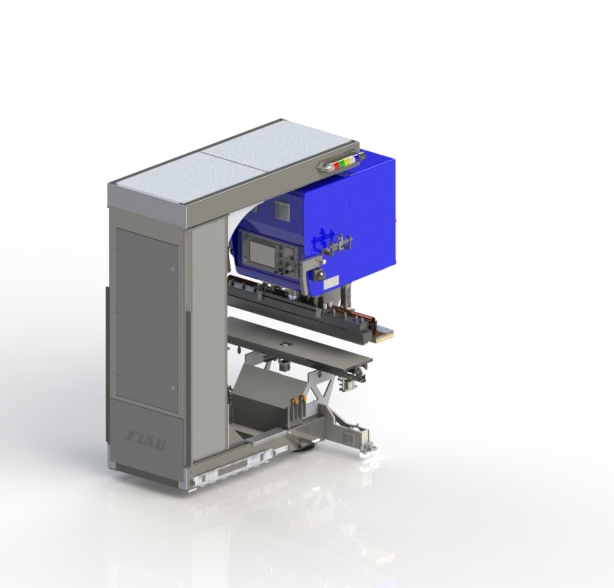

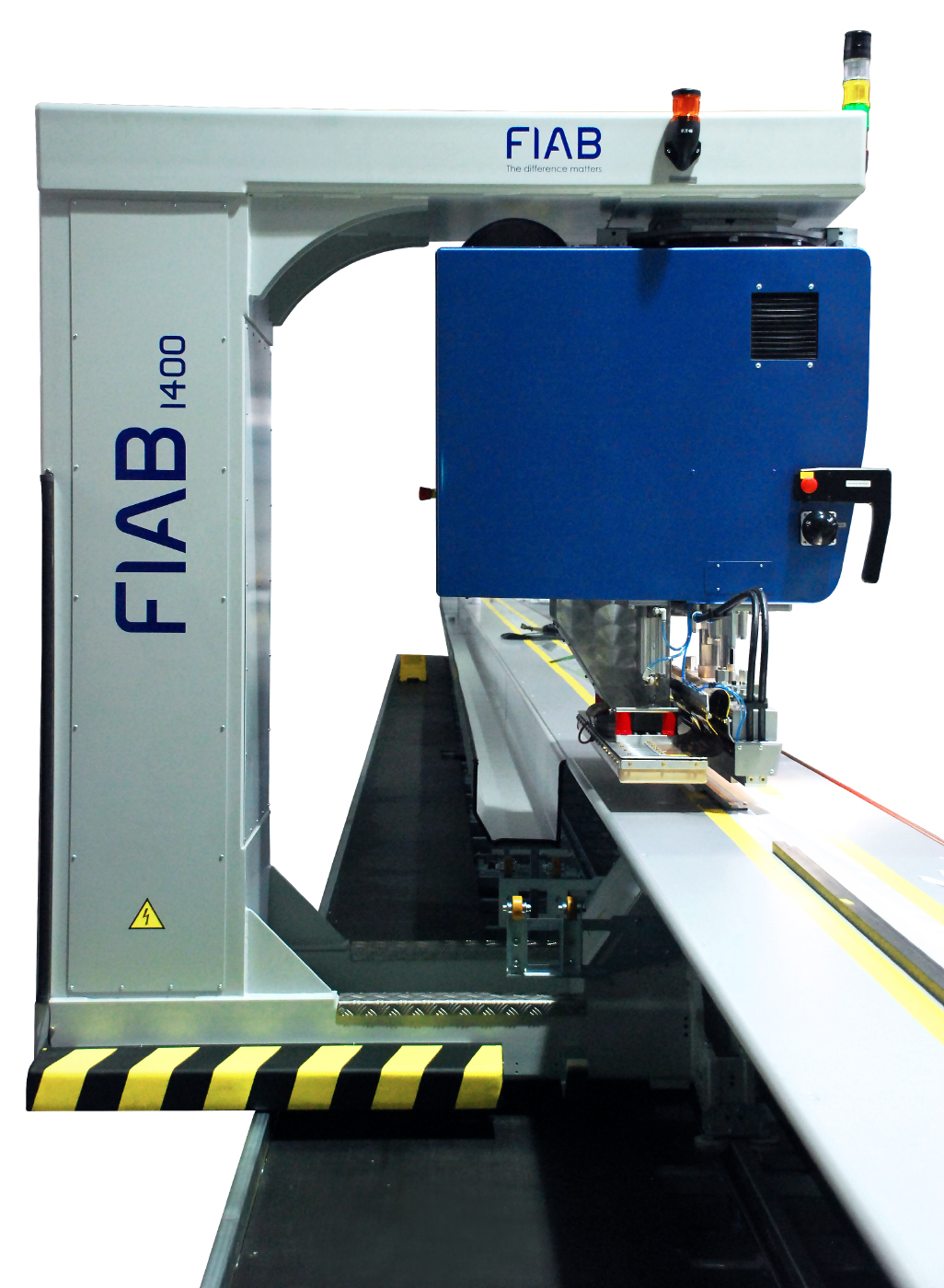

With its innovative construction, the operator can position themselves directly at the electrode—from inside the machine—significantly improving control over the welding process, especially for large surfaces.

FIAB 1400 can be adapted to various production environments:

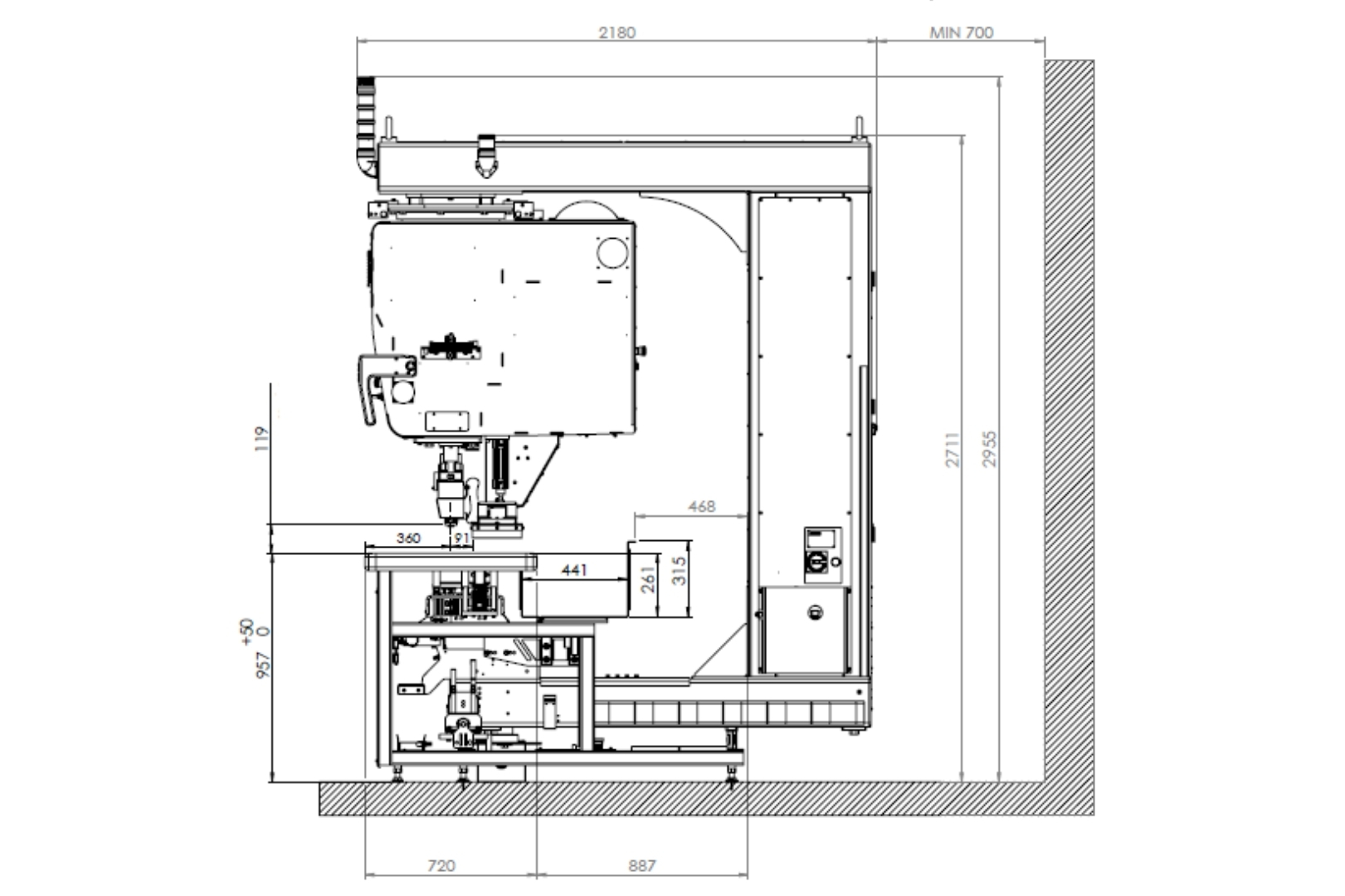

Pit installation
The machine is installed in a арнайы pit below floor level, allowing the working surface to align with the production floor. This solution greatly facilitates handling large and heavy materials and significantly improves operator ergonomics.

Additional front table
Option to install an additional front table, creating a continuous and even working surface.

These options provide full flexibility in workstation design and maximize the use of available space while improving material positioning efficiency.

Designed for demanding applications

FIAB 1400 is a reliable solution for companies that require an efficient system for fast and precise welding of long, heavy materials. It performs exceptionally well in large production facilities as well as in specialized applications requiring the highest level of precision.

Redefined flexibility and performance

DESIGNED FOR ADVANCED PRODUCTION

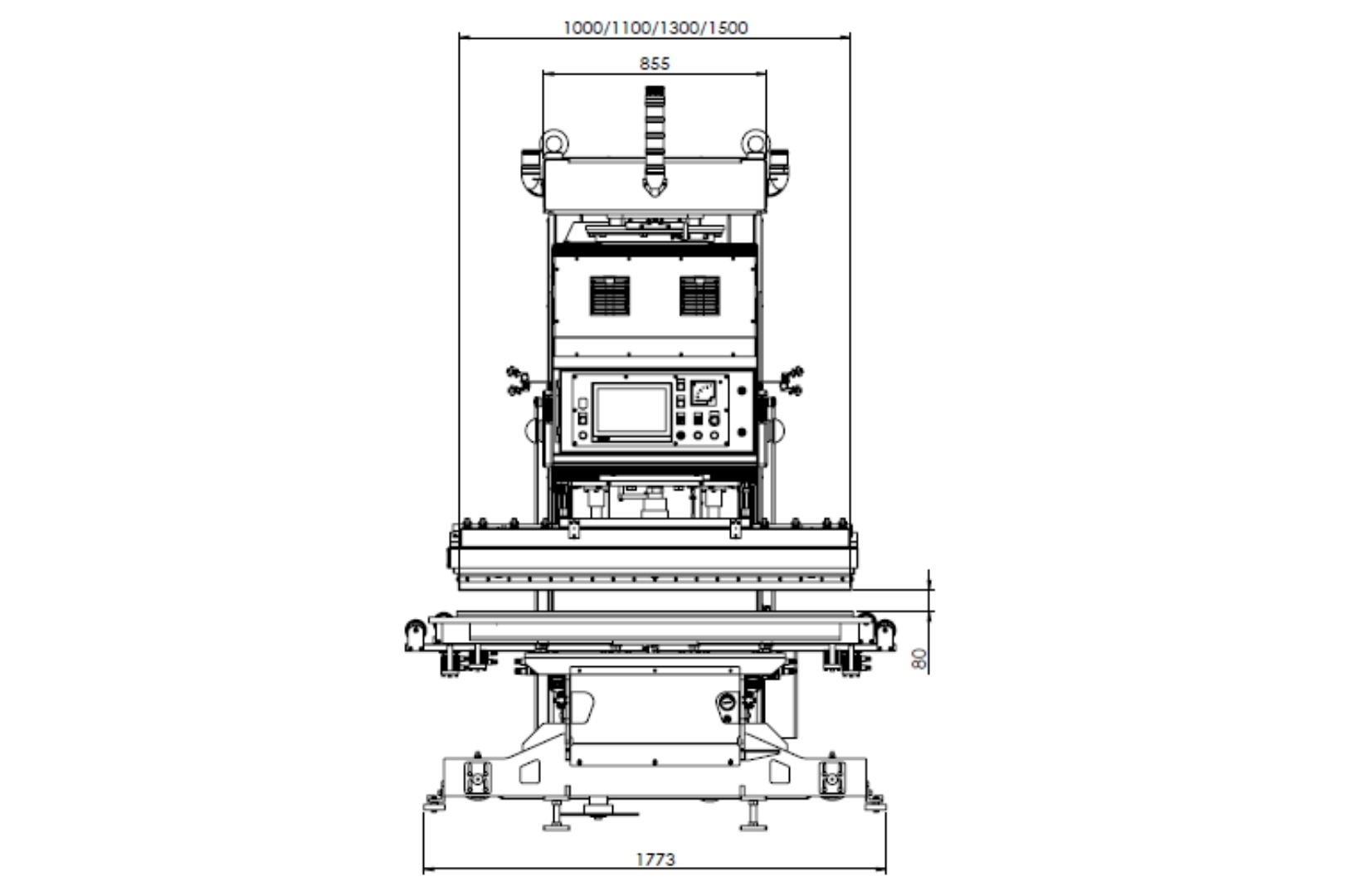

The FIAB 1400 was developed for clients who require flexibility both in machine configuration and workflow organization. It is available with various material table sizes—small, medium, and large—allowing the machine to be adapted to specific production needs and material dimensions. This adaptability makes it an ideal solution for a wide range of applications and production layouts.

ERGONOMICS THAT ENHANCE PRODUCTIVITY

The FIAB 1400 is designed with operator comfort and work efficiency in mind.

Operators can:

Move along with the machine during the welding process
Safely navigate anti-slip platforms at the rear of the machine
Prepare the next product in advance before the machine reaches the working position

This significantly reduces downtime and increases overall production efficiency.

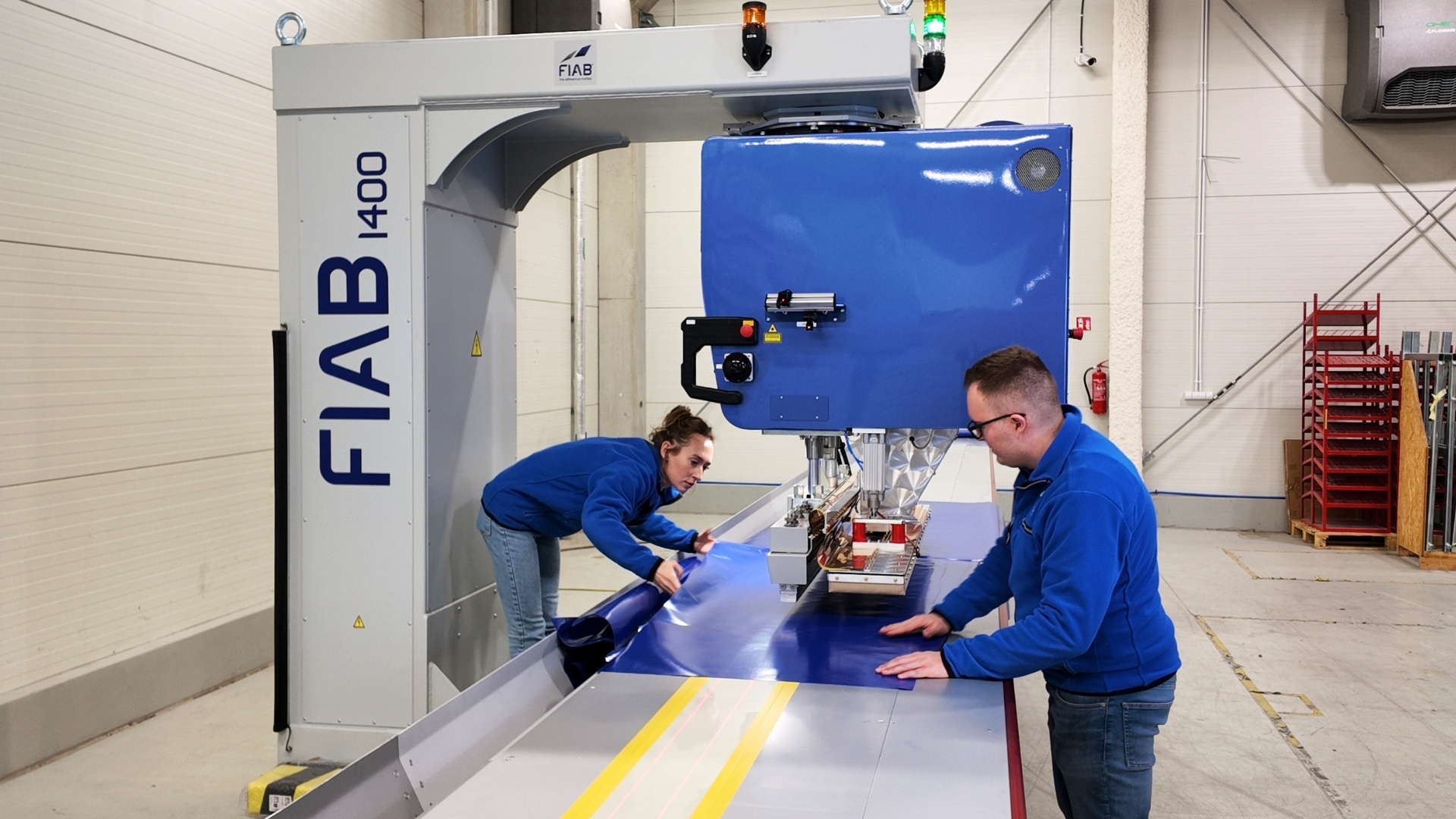

UNIQUE TWO-SIDED OPERATION

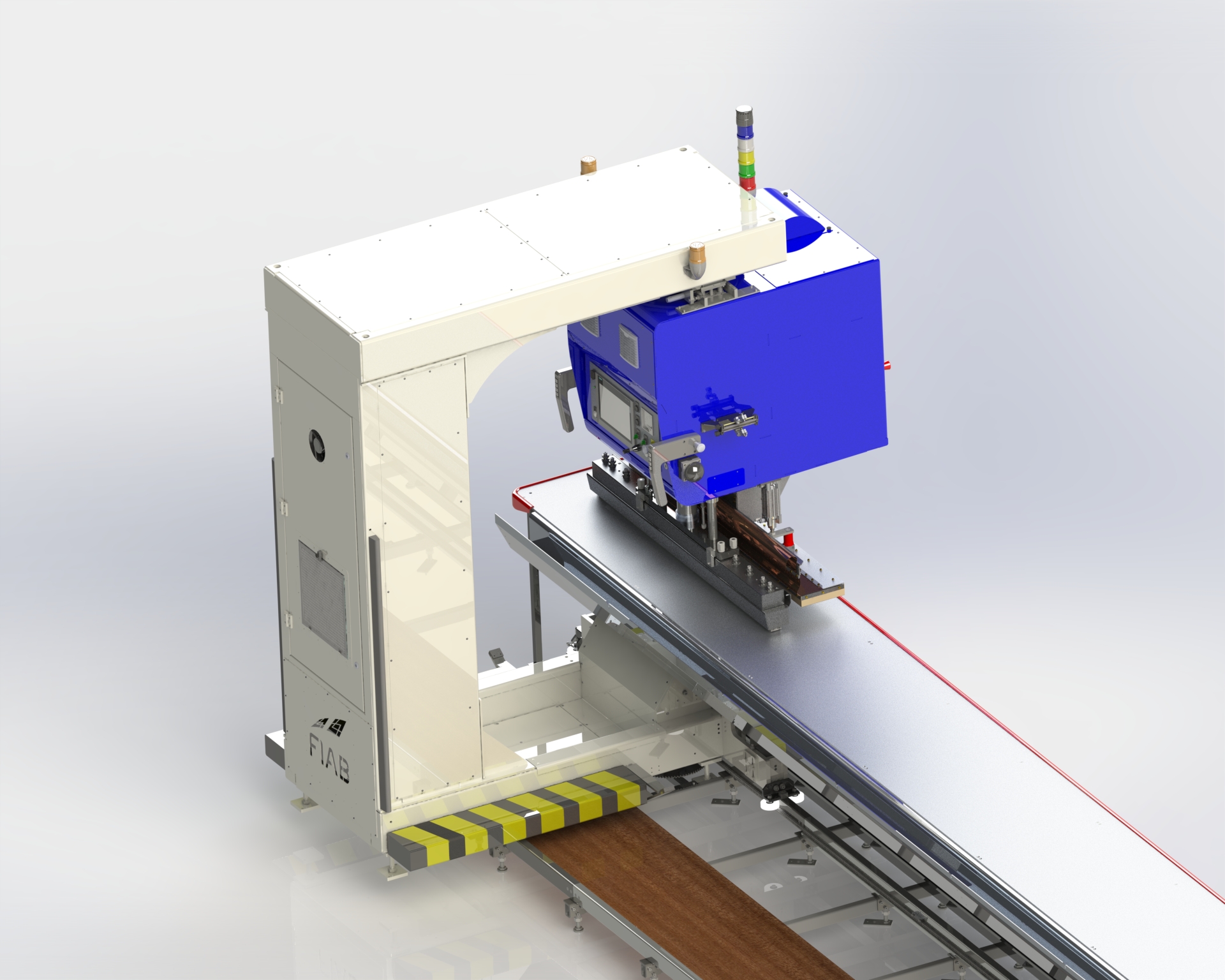

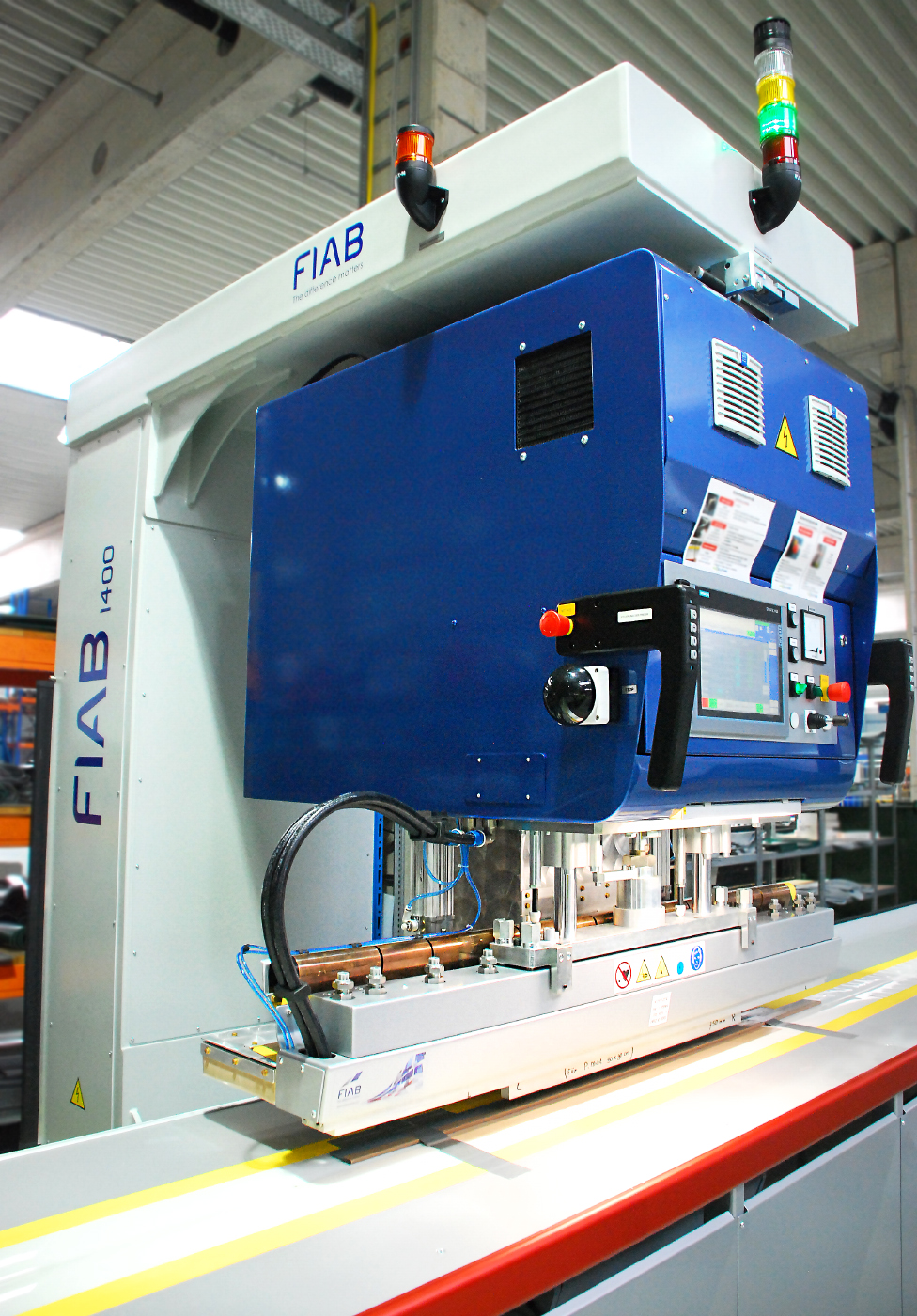

A key feature of the FIAB 1400 is its rotating welding head, which allows operation from both the front and rear of the machine.

Front-side operation as in a standard HF welding machine
Rotating head and rear-side operation for improved accessibility

This unique functionality allows the operator to stand or sit inside the machine, providing excellent access to both the material and the control panel.

Key Features

Unique design allowing the operator to work from inside the machine
Two-sided material handling for precise control of the welding process both behind and in front of the electrode

Solution for handling heavy and large-sized materials:

Ideal for pit installation or use with an additional table
High power providing flexibility for various materials
Ergonomic operation enhancing comfort and workplace safety
Versatile applications – from serial production to specialized tasks

Applications of the HF Welding Machine – FIAB 1400

The FIAB 1400 high-frequency welding machine is used in the production of PVC, TPU, and technical textiles wherever durable, airtight, and repeatable welding of materials is required.

Production of tent halls and PVC structures
Manufacture of tent halls, storage tents, and temporary PVC structures. The FIAB 1400L S, with its programmable head travel function, is ideal for producing PVC film windows (Crystal), ensuring neat and airtight seams.

Advertising industry production
Manufacture of large-format banners, advertising tents, exhibition stands, and inflatable advertising carriers. HF welding guarantees durability and high visual quality of the products.

Production of flexible tanks
Manufacture of tanks for water, chemicals, and gases from PVC and TPU materials. HF technology ensures complete tightness and high resistance to operational conditions.

Production of membrane architecture and tensioned structures
Manufacture of architectural membranes, canopies, and lightweight tensioned structures where seam strength and aesthetics are critical.

Production of industrial and agricultural membranes
Production of membranes for biogas plants, silo covers, and protective coverings. HF welding enables the creation of large, airtight surfaces.

Built for the most demanding applications:

If your products are too large, too heavy, or too complex for standard machines - the FIAB 1400 is the solution.

Functionality and technologies

Recipes – quick setting changes and full production repeatability:

The welding machine allows saving and instantly recalling ready-made parameter sets for different products and applications. Each recipe includes key process settings—such as welding time, power, pressure force, and cooling time—essential for achieving durable and aesthetically precise joints.

Once a recipe is saved, the operator can adjust settings in just two clicks—without guesswork or manual calibration. This means faster changeovers, reduced risk of errors, and higher production efficiency.

SBS System – step welding for demanding materials:

The advanced SBS system was designed for materials that are difficult to weld, including non-flammable and multilayer materials.

Thanks to proprietary software solutions, you can program multiple welding stages within a single cycle. In practice, this means the material is gradually processed with different parameters, allowing controlled and effective bonding.

The SBS system expands production capabilities and provides an advantage where standard welding is insufficient.

Additional options:

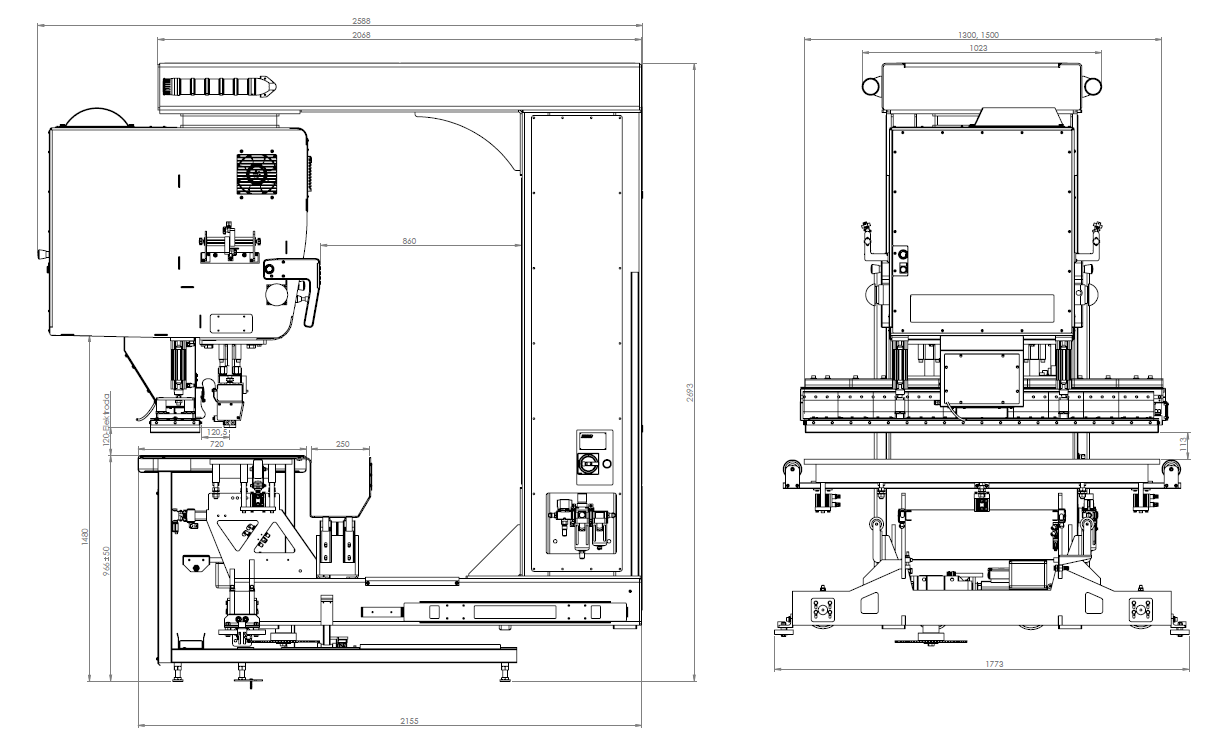

Technical specification of the FIAB 1400

Output power	10kW \| 13kW \| 17kW \| 22kW
Voltage	3 x 400 V/50 Hz
Main fuse	C63A
Working frequency	27.12 MHz ± 0.6%
Cooling unit	oil cooling
Press presure	1920 kG
Tool holder size	max. 1700 mm
Welding surface	max. 880 cm2
Electrode exchange system	through touch panel
Antiflash unit	FIAB Security System
Finger protection system	FIAB Fingerprotection
Compressed air supply	min. 7 bar / max. 9 bar
Compressed air consumption	8780 cm³ / cycle
Operator panel	Beckhoff 12"
Control system	Beckhoff
Machine's weight	2500 kg
Table lenght	2 m sections
Table weight	150 kg / 170 kg / 179 kg section (2 m)
Material box	small / medium / big
Rotating head	optional 180° manual
