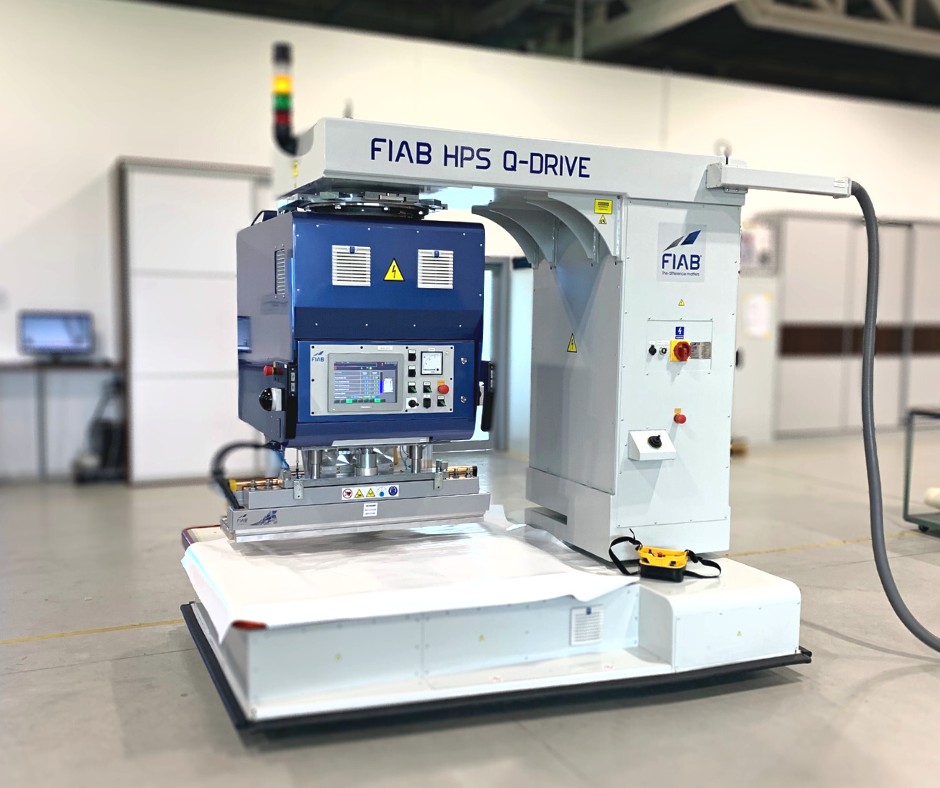

HPS Q-Drive – HF Welding Machine with Rotating Head and Servomechanisms – Full Mobility

The HPS Q-Drive welding machine was designed for manufacturers working with very large and heavy material surfaces, where the biggest challenge is moving the material around the production hall, e.g., biogas membranes, air domes, or large tent halls.

With the HPS Q-Drive, you no longer need to maneuver the material itself – this is a welding machine that moves through the hall to wherever you need it.

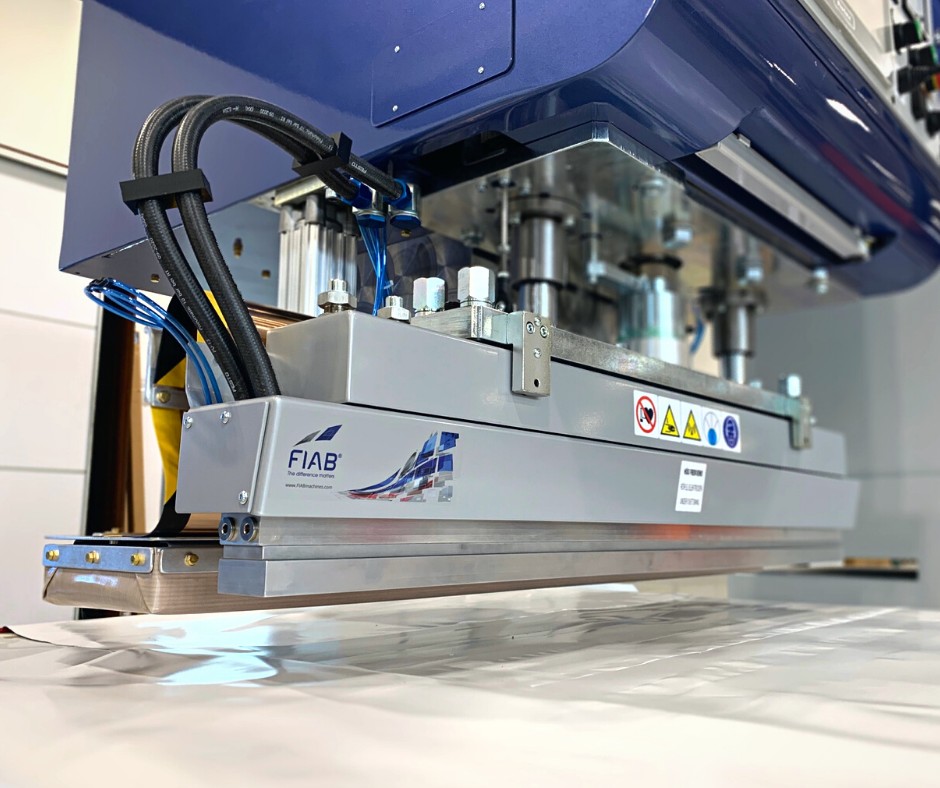

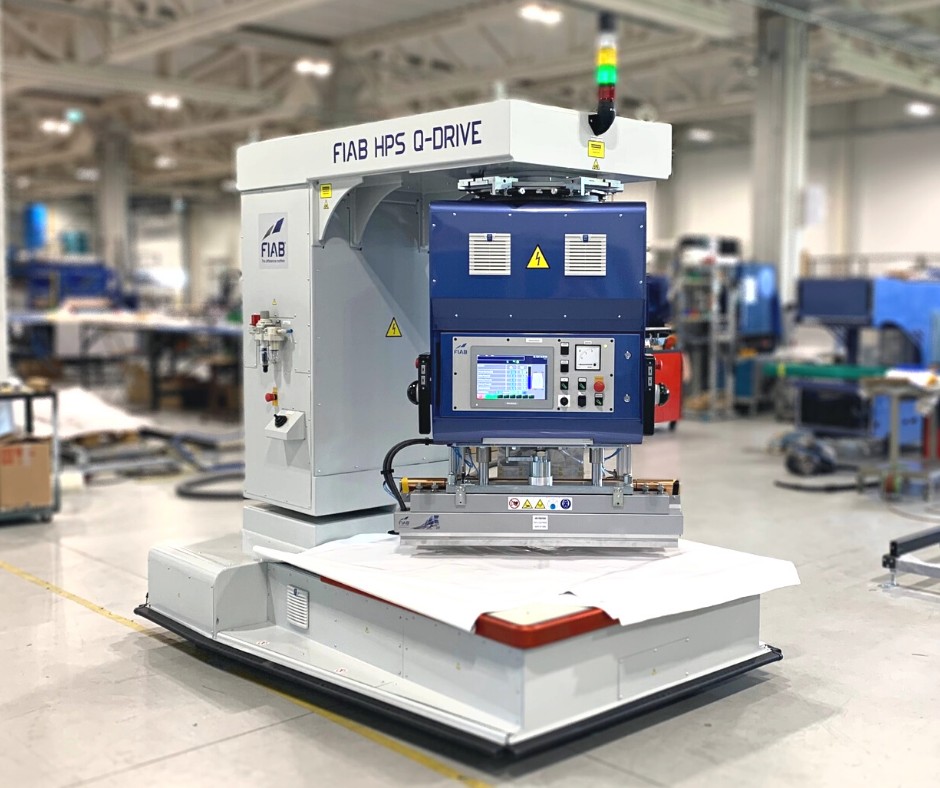

The HPS Q-Drive is essentially an advanced HF welding head mounted on a table equipped with fully rotating servomechanisms, allowing it to move in any direction and rotate around its own axis, providing exceptional maneuverability and flexibility. You can precisely position the HPS Q-Drive anywhere in the hall and align it exactly as needed relative to the material.

Thanks to its large batteries, the HPS Q-Drive can operate even without direct power supply, enhancing mobility and ease of use. This innovative welding machine is particularly suitable for the production of biogas membranes, air domes, large hangars, and other large-surface products that require precise and durable bonding.

Stop moving the material. Start moving the boundaries of your production.

Break the limits of large-format welding.

Handling large and heavy materials has always been the biggest bottleneck in production.

Not anymore.

The HPS Q-Drive completely changes the game — instead of struggling to position the material, you move the welding exactly where it’s needed.

Faster. Easier. Smarter.

Full mobility. Full control. No compromises.

The HPS Q-Drive is not just another HF welding machine.

It is a fully mobile production system based on servomechanisms and equipped with a rotating head, freely moving around the hall — in any direction, at any time.

You decide where the weld is made. Not the limits of your production.

✔ The machine moves — not the material

✔ HF head rotates 270°

✔ Maximum maneuverability thanks to servomechanisms

✔ Unlimited positioning across large surfaces

✔ Battery operation — complete independence

Built for the most demanding applications:

If your products are too large, too heavy, or too complex for standard machines — the HPS Q-Drive is the solution.

Functionality and technologies

Recipes – quick setting changes and full production repeatability:

The welding machine allows you to save and instantly recall ready-made parameter sets for different products and applications. Each recipe includes key process settings—such as welding time, power, pressure, and cooling time—necessary to achieve durable and aesthetically precise joints.

Once a recipe is saved, the operator can adjust settings in just two clicks—no guessing or manual calibration required. This means faster changeovers, reduced risk of errors, and higher production efficiency.

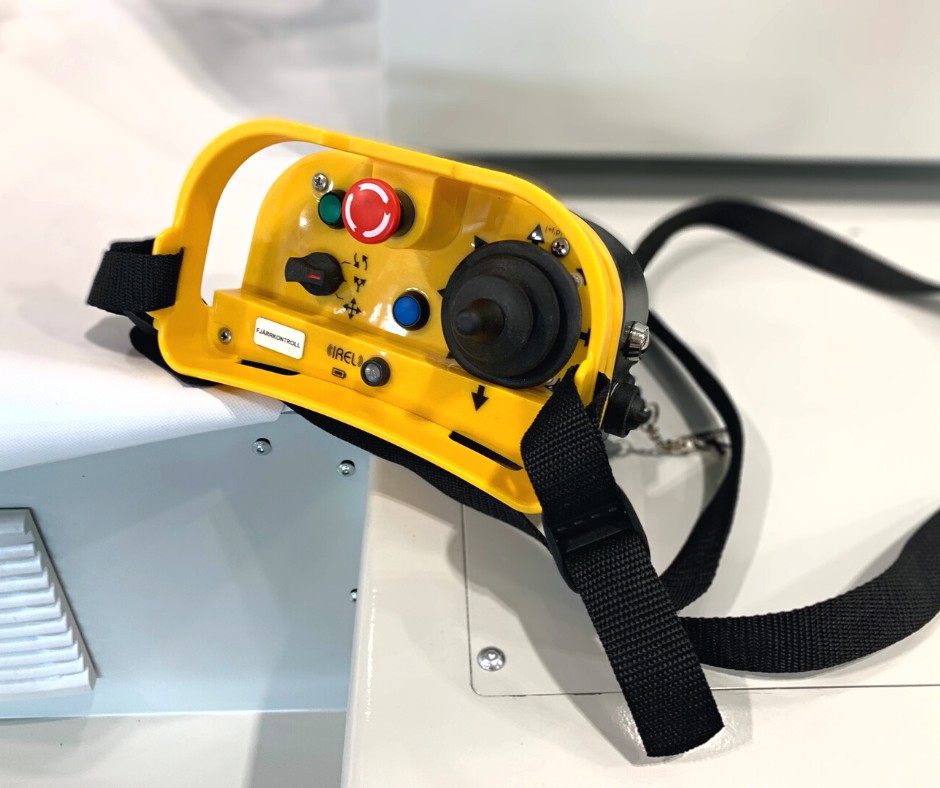

Remote Radio Control – full control in your hands:

With the FIAB remote control, operating the welding machine becomes extremely simple and convenient. Control the machine remotely using an intuitive controller, without the need to walk over the material. Precise control, enhanced comfort, and maximum efficiency — all at your fingertips.

SBS System – step welding for demanding materials:

The advanced SBS system was designed for materials that are difficult to weld, including non-flammable and multilayer materials.

Thanks to proprietary software solutions, you can program multiple welding stages within a single cycle. In practice, this means the material is gradually processed with different parameters, allowing controlled and effective bonding.

The SBS system expands production capabilities and provides an advantage where standard welding is insufficient.

Remote diagnostics – immediate support, no downtime:

Thanks to the built-in internet module, the FIAB HPS Q-Drive welding machine connects to the network via Wi-Fi or Ethernet cable, enabling our service team to perform fast and effective remote diagnostics. Any issue can be identified and resolved within moments, minimizing downtime and maximizing production efficiency.

With the FIAB HPS Q-Drive, breakdowns don’t stop your operation — we act instantly, wherever you are.

Opcje dodatkowe:

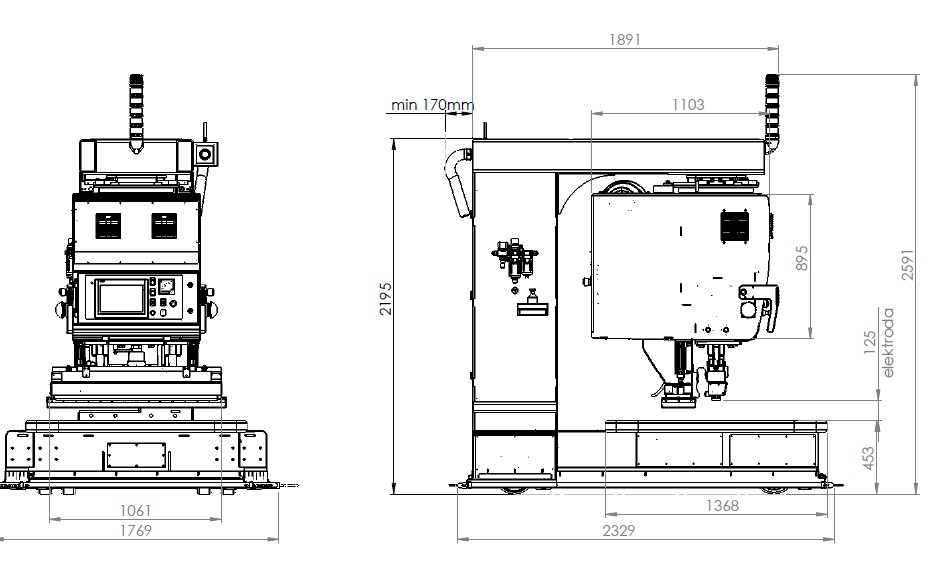

Technical specifications of the FIAB HPS Q-Drive

Output power	10 kW \| 13 kW \| 17 kW \| 22 kW
Voltage	3 x 400 V/50 Hz
Main fuse	C63A
Operating frequency	27.12 MHz ± 0.6%
Cooling	oil cooling
Pressure	1920 kG
Max. electrode length	max. 1100 mm
Welding area	max. 880 cm²
Electrode changing system	through touch panel
Anti-flash system	FIAB Security System
Finger protection	FIAB Fingerprotection
Compressed air supply	min. 7 bar / max. 9 bar
Compressed air consumption	8615 cm³/cycle
Touch panel	Beckhoff 12''
Control	Beckhoff
Weight	3000 kg
Rotating head	0°–270° in 45° steps, manually adjustable
Overlap	100 mm

High frequency welder FIAB Q-DRIVE
