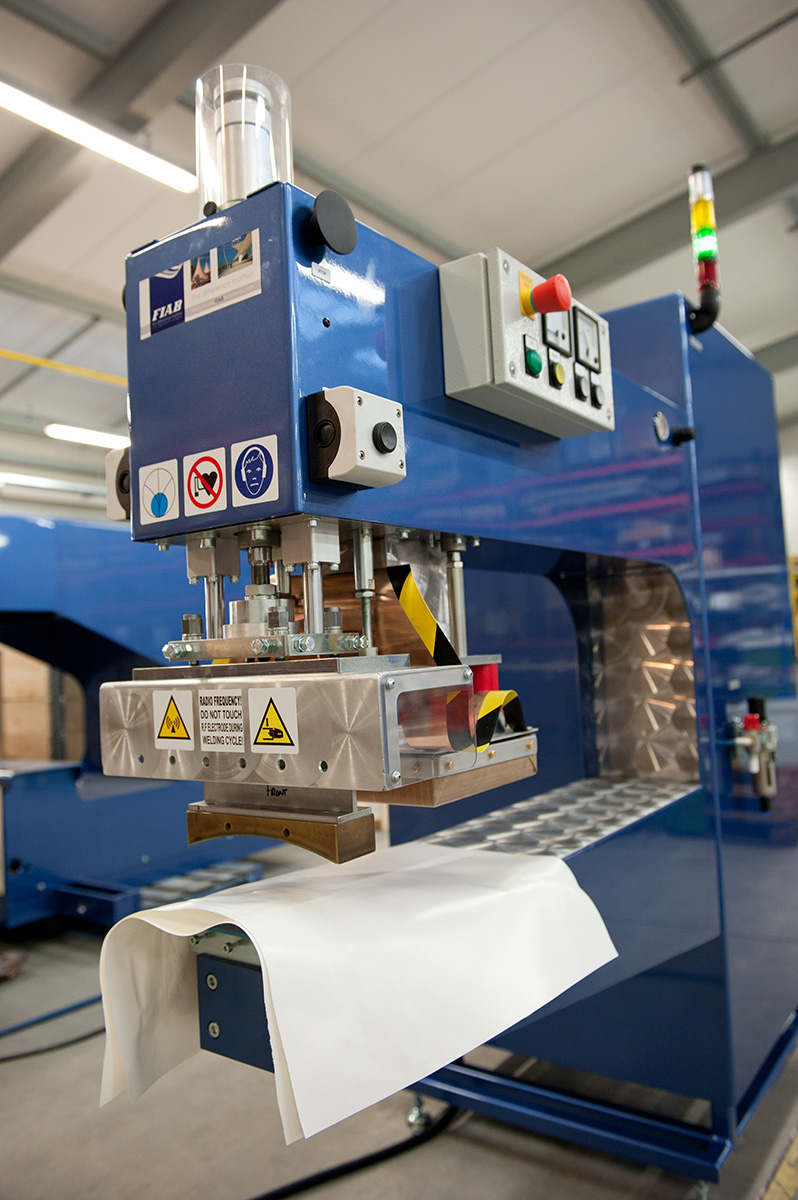

FIAB 360L is the smallest high-frequency welding machine in the FIAB range, designed for precise welding of PVC, PU, and TPU components where quality, repeatability, and aesthetics of the weld are critical.
It performs exceptionally well in processes such as tube closing, welding of circular elements, and precise joining of reinforcements, stiffeners, and details — especially in the production of pneumatic products, technical structures, and specialized goods.
FIAB 360L is designed for specific applications, allowing you to choose the most suitable head configuration:

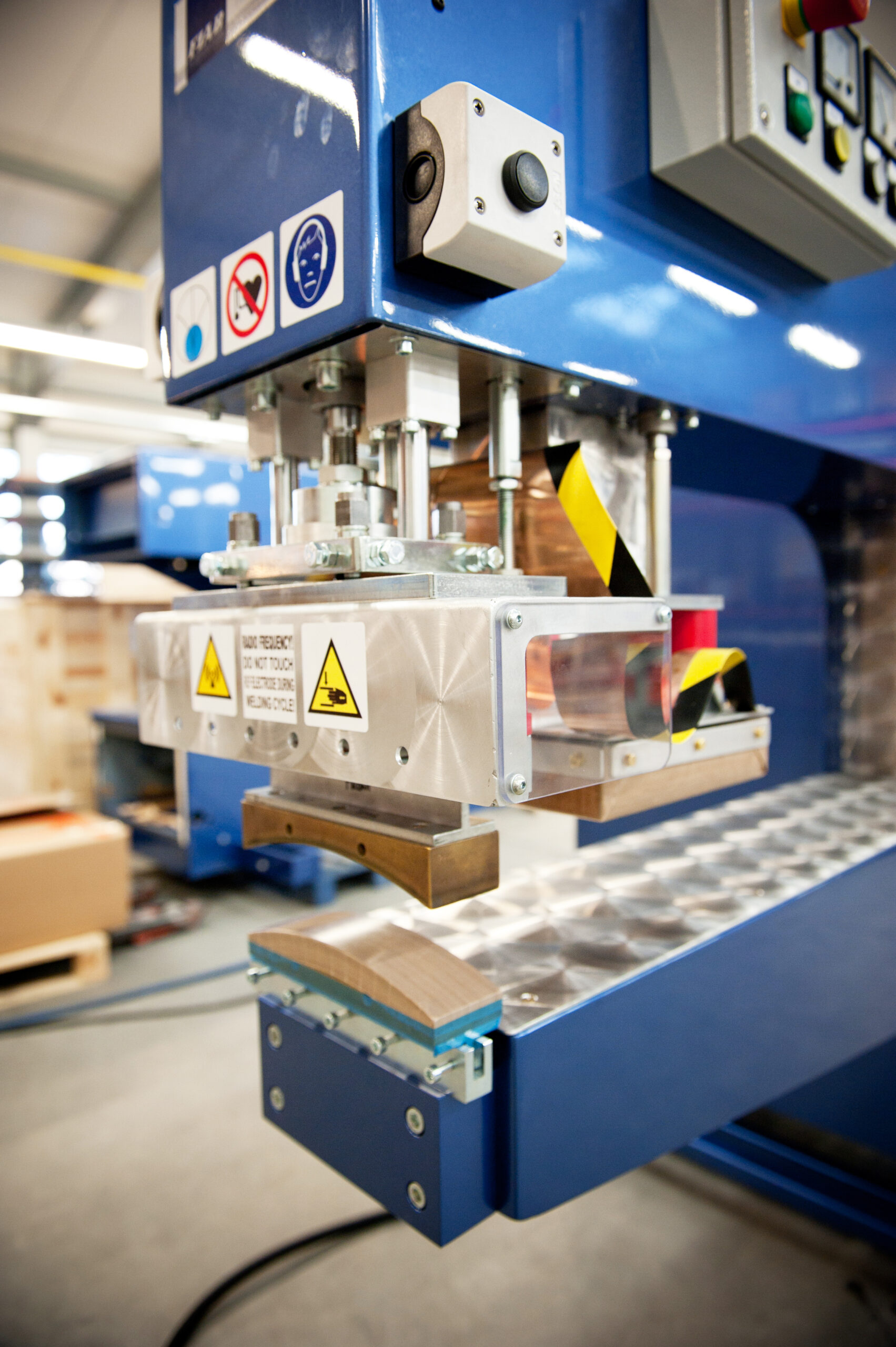

Semi-circular head – ideal for closing tubes and welding circular elements (e.g., pneumatic products) View available heads
Straight head – for precise, thin, and aesthetic welds, e.g., in waterproof clothing
Press version – enables operation with electrodes of any shape, customized for specific components
FIAB 360L is an ideal solution for companies looking for an HF welding machine for producing details, circular elements, and technical components, where precision, quality, and process reliability are essential.

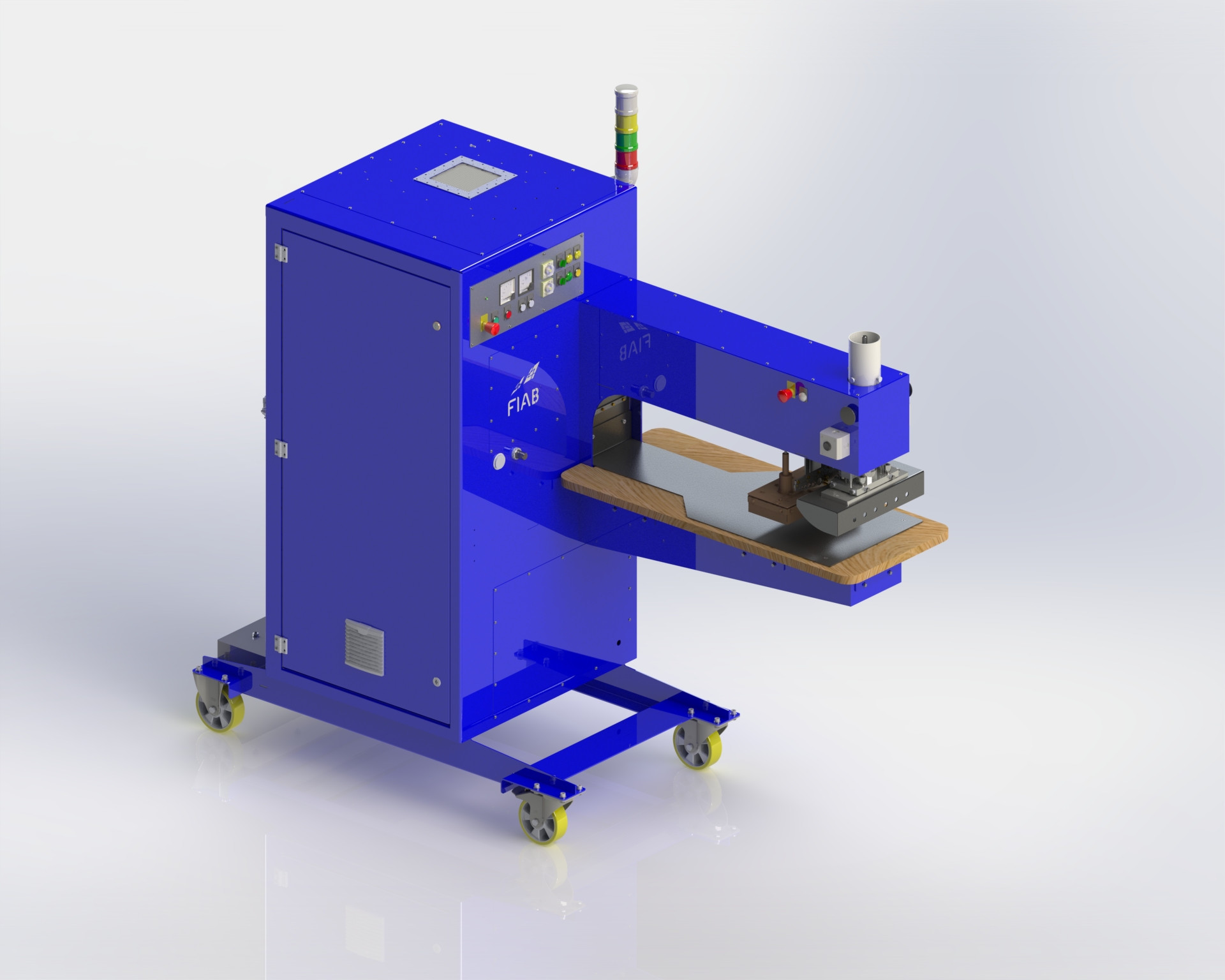

The FIAB 360L stationary welding machine has been equipped with an extended neck and a grounding foot, providing greater working freedom when welding larger or more demanding components compared to the standard FIAB 360 model.
The increased space between the electrode and the machine housing enables more convenient material handling and improved access to the working area. The additional room behind the electrode allows for placing a larger amount of material, which significantly facilitates part positioning, improves work ergonomics, and increases operator comfort during daily production.
The FIAB 360L has also been equipped with an additional grounding foot, designed to enhance operator safety. Due to the extended neck design and the increased distance between the working area and the machine body, the use of extra grounding provides an even higher level of protection during daily operation.
The FIAB 360L has been designed to enhance operator comfort by providing additional space behind the electrode for material placement. This solution significantly improves handling, enhances ergonomics, and streamlines daily production processes.
In addition to the extended neck design, the FIAB 360L retains all the proven functionalities of the FIAB 360 model.
Closing circular elements – ideal for advertising inflatables, pneumatic screens, and inflatable gates
Rounded tube endings – e.g., flexible tanks, flood barriers, and technical structures made of PVC, PU, and TPU
Corner reinforcements – for membranes, tents, and tarpaulins, increasing product durability
Handles, grips, and details – fast and aesthetically clean welding of small components
Medical products – e.g., fluid bags and IV components, where precision, tightness, and repeatability are critical
| Output power | 3 kW |
| Main fuse | C32 A / RCD: 100 mA |
| Voltage | 3 x 400 V / 50 Hz |
| Frequency | 27.12 MHz ± 0.6% |
| Cooling unit | air cooling |
| Press force | 280 kg |
| Antiflash unit | FIAB Security System |
| Compressed air supply: | min. 7 bar / max. 9 bar |
| Compressed air consumption | 900 cm³ / cycle |
| Maximum electrode length | 200 mm |
| Maximum welding area | 120 cm² |
| Approximate machine weight | 650 kg |
