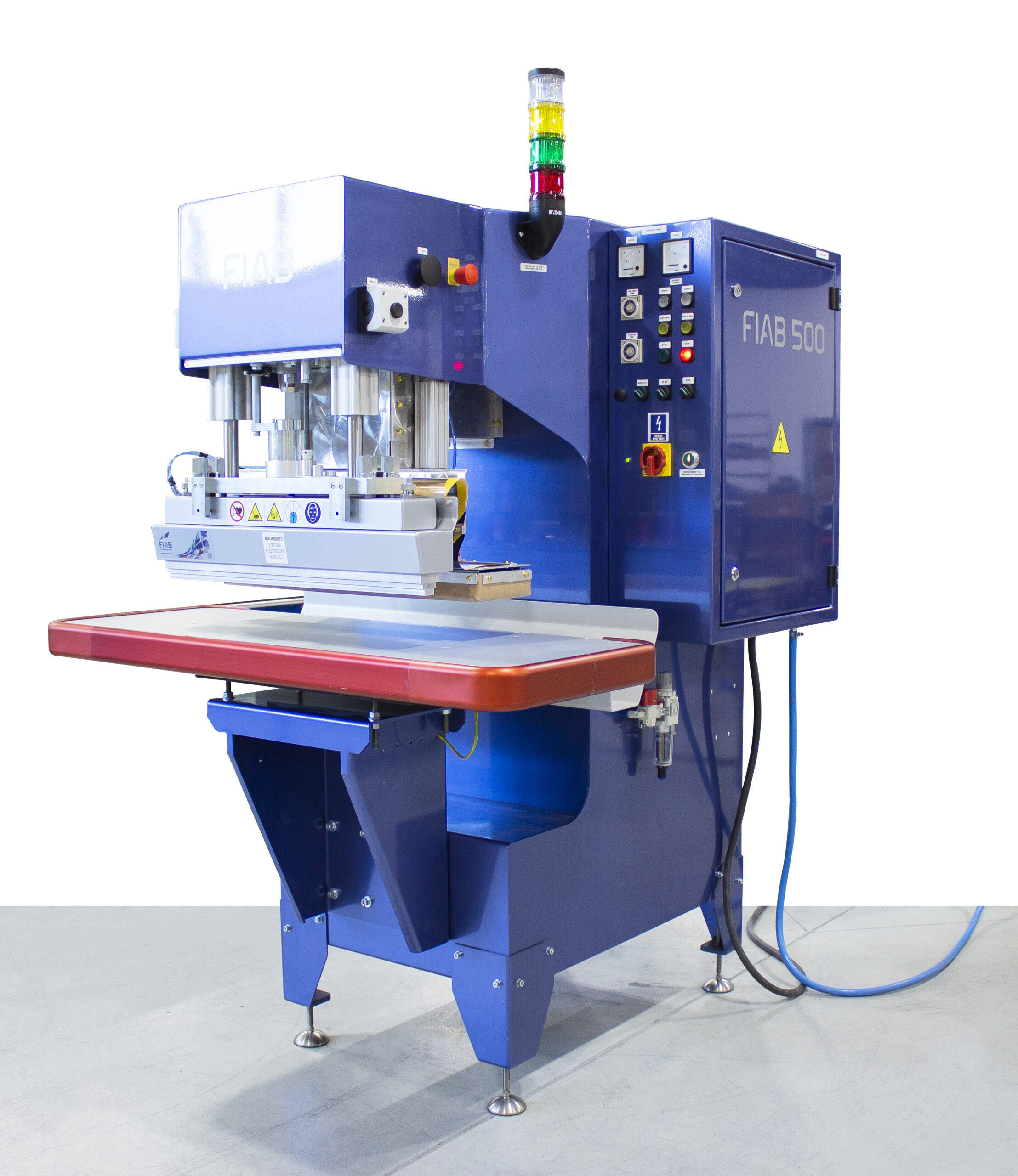

The FIAB 500 stationary welding machine is a welding machine created in cooperation with our clients. It ideally supports production line work. It can be used for welding tarpaulins, pontoons or waterbeds.
The FIAB 500 machine works excellently in the production of:
- protective clothing, roofing,
- signs and banners,
- pontoons.
For the FIAB 960, we offer many electrode models: lamellar electrodes, curved-shaped electrodes for window welding, soft electrodes, tunnel electrodes, engraved electrodes (e.g., with logo), as well as customized ones.
The FIAB 960 welding machine is used in the production of:
- tarpaulins,
- halls and tents,
- roofing,
- furniture,
- signs and banners,
- stretch ceilings,
- tanks for liquids and gases,
- oil booms.
| Output power | 5 kW |
| Fuse | 32 A |
| Voltage | 3 x 400 V/50 Hz |
| Operating frequency | 27.12 MHz +/- 0.6% |
| Cooling | air |
| Pressure (kg/cm2) | 480 kg |
| Anti-flash | FIAB Security System |
| Air supply | max. 6 bar |
| Max air consumption | 60 l/min |
| Max tool length | 700 mm |
| Max welding surface | 140 cm2 |
| Machine weight | 650 kg |
